Rixson 127-3/4 Center Hung Pivot Set, Jamb Mounted

  • SKU: 12734626
Rixson 127-3/4-626
Rixson 127-3/4-626
Rixson 127-3/4
Rixson 127-3/4-613
All RIXSON Products

Rixson 127-3/4 Center Hung Pivot Set, Jamb Mounted

  • SKU: 12734626
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 928.00/ea
Finish: US26D-626 Satin Chrome

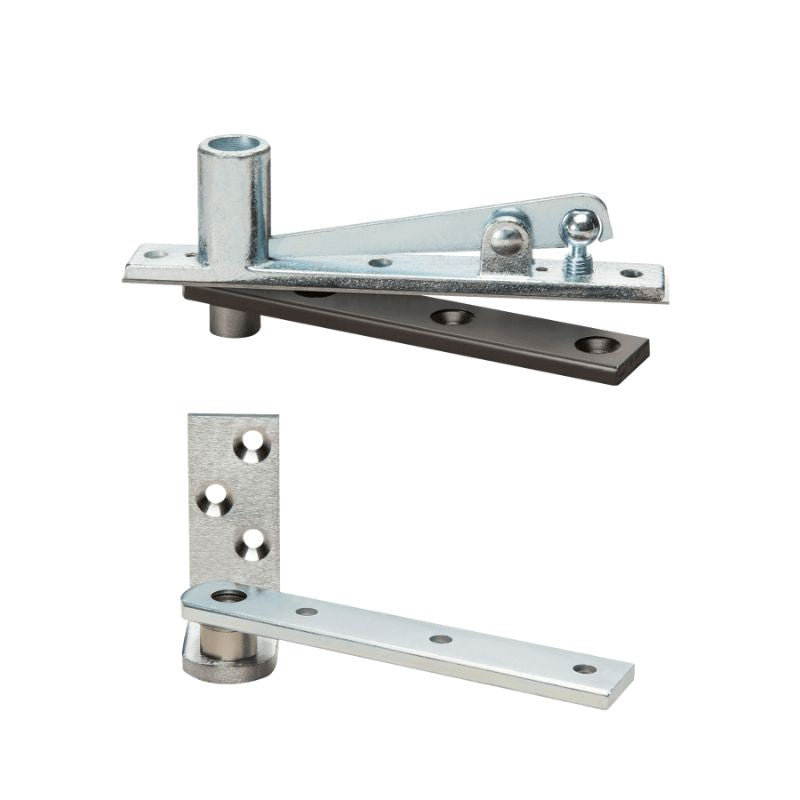

Rixson 127-3/4 Center Hung Pivot Set Jamb Mounted, Non-Handed, For Doors Weighing Up To 200 LBS (Includes Top & Bottom Pivot)

  • Available in US26D-626 Satin Chrome and US10B-613 Oil Rubbed Bronze

Application
• Interior Doors
• Weight to 200 lbs.
• Door Sizes up to 3'6"x 8'6" (1067 x 2591mm)
• Non-handed
• Light-Duty/Light Weight Jamb Attached Pivot Set

Center hung pivots are door hanging means only. To close doors, see floor closer sections.
Description/Features

• Standard top pivot 320 included
• Bottom pivot mortised into side jamb
• Weight of door borne by floor
• Pivot point centered in thickness of the door
• Door must have a radius on pivot edge
• Not allowed for use on labeled doors and frames
• Pivot point remains constant at 1-1/4 from the edge of the door
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
Product Cut Sheet
