Rixson 117 3/4 Center Hung Pivot Set Heavy Weight Doors Up To 600LB, Handed, Includes Top & Bottom Pivot

  • SKU: 11734626
Dhs. 3,205.00/ea
In Stock
In Stock
Rixson Finish: 626 Satin Chrome (US26D)

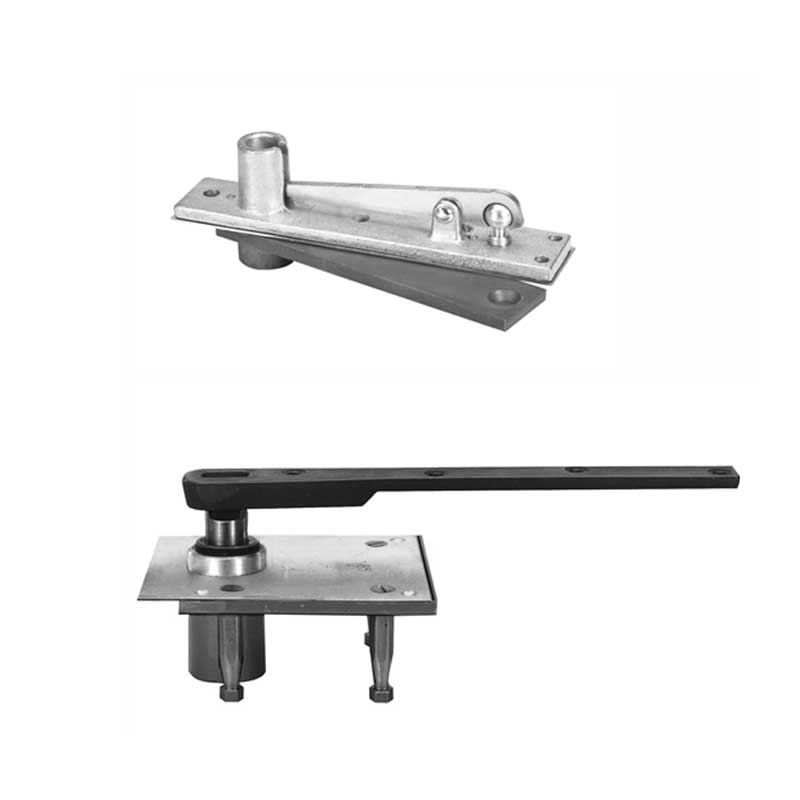

Rixson 117 3/4 Center Hung Pivot Set Heavy Weight Doors Up To 600LB, Handed, Includes Top & Bottom Pivot

Application
• Exterior or Interior Doors
• Weight to 600 lbs.
• Door Sizes up to 4'0"x 8'6"* (1219 x 2591mm)
• Non-handed

Center hung pivots are door hanging means only. To close doors, see floor closer sections.

*For doors taller than 8'6" use top pivot 345 in lieu of 340
Description/Features

• Standard top pivot 340 included
• Bottom pivot is mortised into floor
• Pivot point centered in thickness of the door
• Door must have a radius on pivot edge
• Heavy-duty bearings
• Pivot set features sealed bearings for protection against weather and debris
• Not allowed for use on labeled doors and frames
• Furnished with wood and machine screws
• Available with extended spindles in 1/2" (13mm) increments up to 2" (51mm) longer than standard
Product Cut Sheet
