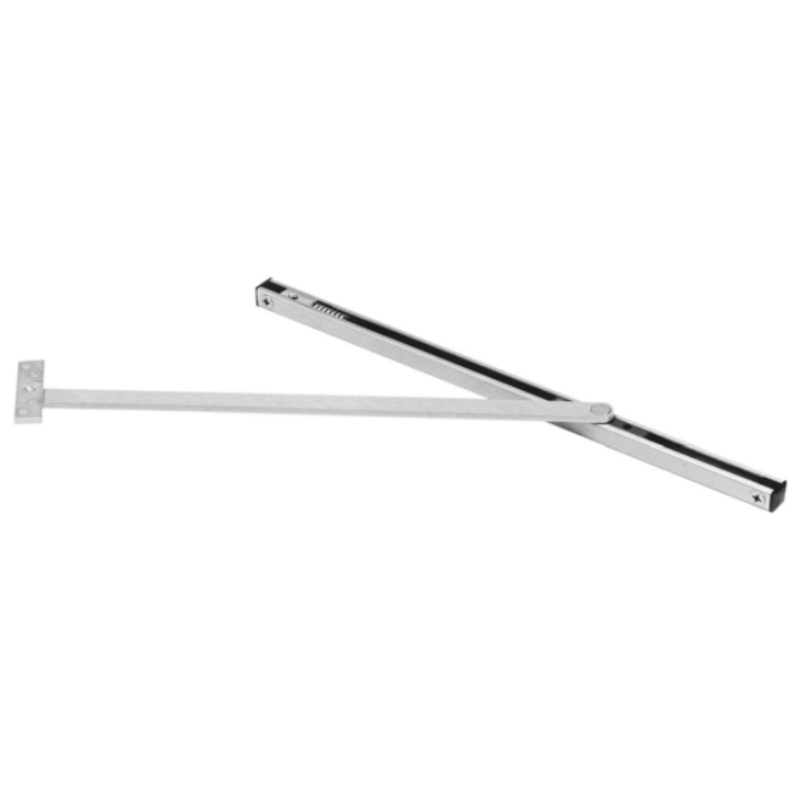

Rixson 10-346-630 Overhead Door Stop Surface Mounted, Multi Function, Dr Width Use Butts or Pivots, Standard Duty, Adjustable, 30 1/6-30 Inch, Max 110 Degrees, 1-3/4 Inch Thick Dr, Non Handed, 30-1/16" - 36" Door Width for Butt Offset Pivots, 32-1/16" - 38" Door Width for Center Hung Pivots, US32D Satin Stainless Steel Finish

Application

• Interior or exterior doors

• Doors are single acting

• Non-handed

• Recommended for high traffic, heavy abuse installations

Features

• Standard duty, adjustable

• 30-1/16" - 36" Door Width for Butt Offset Pivots, 32-1/16" - 38" Door Width for Center Hung Pivots



• Slide track design

• Degree of opening fully adjustable and can be adapted to changing needs

• Heavy shock absorber spring provides compression before deadstop

• Can be ordered specifically as a stop, friction stay, or hold open.

• Multi-function unit is shipped as a stop. Can be converted to a hold open or friction in field. 5012- PKG (Adapter kit) included

• Complete screw packet with thru-bolts for door, wood and machine screws for frame

• Torx® screws optional for security applications, but heavy-duty units should be considered for high-security applications

• Durable slider cam and shock block

• 110° maximum opening

• 3/4" square channel

• For pull side mounting or flush and rabbeted mounting on push side use angle jamb bracket adapter 5258

Compliance

• ANSI/BHMA A156.8, Grade 1 Certified (

  Stop Models)

• Stop function UL listed for fire door assemblies
