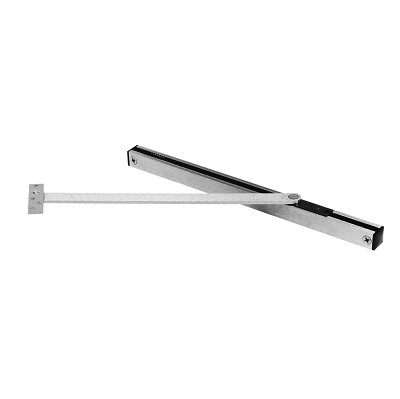

Rixson 10-346-630 Overhead Door Stop Surface Mounted, Satin Stainless Steel Finish

  • SKU: 10346630

Rixson 10-346-630 Overhead Door Stop Surface Mounted, Satin Stainless Steel Finish

  • SKU: 10346630
Sale priceDhs. 870.00/ea
In Stock
In Stock

Rixson 10-346-630 Overhead Door Stop Surface Mounted, Multi Function, Dr Width Use Butts or Pivots, 30 1/6-30 In, Max 110 Deg, 1 3/4 Tk Dr, Non Handed, US32D Satin Stainless Steel Finish

Rixson Checkmate 10-346 Standard-Duty Surface Mounted Adjustable Stop and Hold Open

  • Single-acting doors
  • Non-handed
  • Slide track design
  • Recommended for medium traffic, medium weight doors
  • A multi-function unit is shipped as a stop. Can be converted to a hold open or friction in the field. 5012-PKG (Adapter kit) included
  • The degree of opening is fully adjustable and can be adapted to changing needs
  • Heavy shock absorber spring provides compression before the dead stop
  • Can be ordered specifically as a stop, friction stay or hold open
  • Complete screw packet with thru-bolts for the door, wood, and machine screws for frame
  • Torx ® screws optional for security applications, but heavy-duty units should be considered for high-security applications
  • Standard architectural finishes
  • Stop function UL listed for fire door assemblies
  • Durable slider cam and shock block
  • 110 ° maximum opening
  • 3/4" square channel
  • For pull, side mounting or flush and rabbeted mounting on the push side use angle jamb bracket adapter 5258
Application: Surface Mount - Interior - Medium Traffic Doors
Butts Offset Pivots: 30-1/16 - 36
Center Hung Pivots: 32-1/16 - 38
Weight: 3.5 lbs
Warranty: 2 Years Limited Warranty
Manufacturer: Rixson



ANSI: 156.8, Grade 1 and 2
UL: UL/ULC Listed
