Description

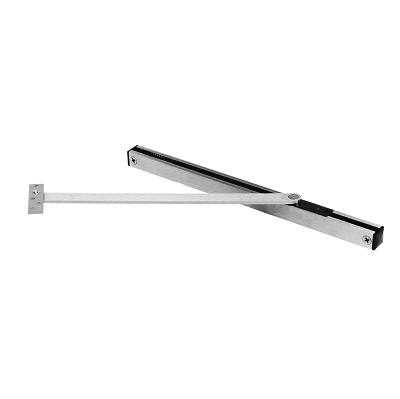

Rixson 10-336-630 Overhead Door Stop Surface Mounted, Dr Width Use Butts or Pivots, 30 1/6-36 In, Max 110 Deg, 1 3/4 Tk Dr, Non Handed, US32D Satin Stainless Steel Finish
All Rixson overhead stops and holders shall be from a single manufacturer. Rixson Standard-duty models are used for interior or low to medium traffic doors. Heavy-duty models used for exterior or high traffic doors or doors subject to abuse. For extremely abusive areas or high winds use the double lever arm type. Coordinate dead stop and/or hold open location with concealed floor closers. Rixson Checkmate products provide hold open and/or dead stop.
- Single-acting doors
- Non-handed
- Slide track design
- Recommended for medium traffic, medium weight doors
- The degree of opening is fully adjustable and can be adapted to changing needs
- Heavy shock absorber spring provides compression before a dead stop
- Can be ordered specifically as a stop, friction stay or hold open
- Complete screw packet with thru-bolts for the door, wood, and machine screws for frame
- Torx ® screws optional for security applications, but heavy-duty units should be considered for high-security applications
- Standard architectural finishes
- Stop function UL listed for fire door assemblies
- Durable slider cam and shock block
- 110 ° maximum opening
- 3/4" square channel
- For pull, side mounting or flush and rabbeted mounting on the push side use angle jamb bracket adapter 5258
Application: | Surface Mount - Interior - Medium Traffic Doors |
Butts Offset Pivots: | 30-1/16 - 36 |
Center Hung Pivots: | 32-1/16 - 38 |
Weight: | 3.5 lbs |
Warranty: | 2 Years Limited Warranty |
Manufacturer: | Rixson |
Certifications
ANSI: | 156.8, Grade 1 and 2, C05542 |
UL: | UL/ULC Listed |
