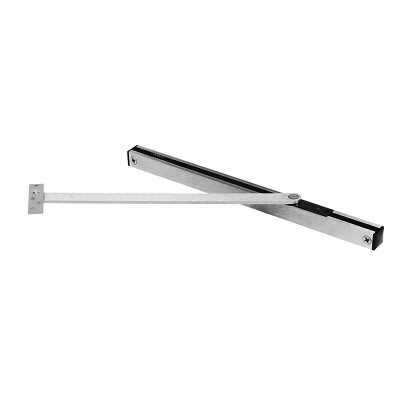

Rixson 10-326-630 Overhead Door Stop Surface Mounted, Hold Open, Satin Stainless Steel

  • SKU: 10326630

Rixson 10-326-630 Overhead Door Stop Surface Mounted, Hold Open, Satin Stainless Steel

  • SKU: 10326630
Sale priceDhs. 870.00/ea
In Stock
In Stock

Rixson 10-326-630 Overhead Door Stop Surface Mounted, With Hold Open, Dr Width Use Butts or Pivots, 30 1/16-36 In, Max 110 Deg, 1 3/4 Tk Dr, Non Handed, US32D Satin Stainless Steel

All Rixson overhead stops and holders shall be from a single manufacturer. Rixson Standard-duty models are used for interior or low to medium-traffic doors. Heavy-duty models used for exterior or high-traffic doors or doors are subject to abuse. For extremely abusive areas or high winds use the double lever arm type. Coordinate dead stop and/or hold open location with concealed floor closers. Rixson Checkmate products provide hold open and/or dead stop.

Features:

  • Single-acting doors
  • Non-handed
  • Slide track design
  • Recommended for medium traffic, medium-weight doors
  • The degree of opening is fully adjustable and can be adapted to changing needs
  • Heavy shock absorber spring provides compression before the dead stop
  • Can be ordered specifically as a stop, friction stay or hold open
  • Complete screw packet with thru-bolts for the door, wood, and machine screws for the frame
  • Torx ® screws are optional for security applications, but heavy-duty units should be considered for high-security applications
  • Standard architectural finishes
  • Durable slider cam and shock block
  • 110 ° maximum opening
  • 3/4" square channel
  • For pull, side mounting, or flush and rabbeted mounting on the push side use angle jamb bracket adapter 5258
Application: Surface Mount - Interior - Medium Traffic Doors
Butts Offset Pivots: 30-1/16 - 36
Center Hung Pivots: 32-1/16 - 38
Weight: 3.5 lbs
Warranty: 2 Years Limited Warranty
Manufacturer: Rixson
ANSI: 156.8, Grade 1 and 2, C05512
UL: UL/ULC Listed
