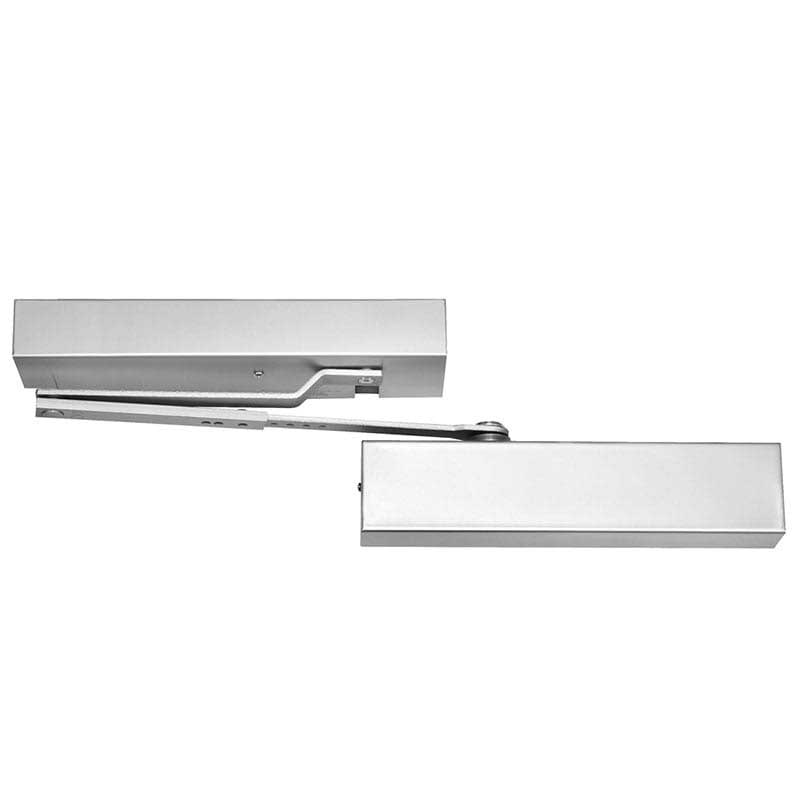

Rixson 0601 Electrified Closer-Holder Smok-Chek V - Non-Detectored, Push Side Mounting
The Rixson 0601 Smok-Chek V series - Non-detectors Push side mounting electromechanical closer/holder. Rixson SMOK-CHEK V is designed to hold fire/smoke doors open, and release when activated by a fire alarm system. as a non-detectors unit in buildings with existing alarm systems. Available in 24VAC/DC or 120VAC
Rixson was the first architectural hardware company to have fire/life-safety Rixson closers and holders. It remains an industry leader
with several distinctly different holding devices. This model is non-detectors that would be connected only to the alarm system. If continual cycling is necessary use a separate switch to release.
Rixson 0601 Electrified Closer-Holder Features
Hold open range 85 °- 135 °
Doors may swing and hold at 180 ° by using special arm 550789
Mounts on 2" header
Adjustable spring surface closer
Maximum reveal 3-1/2"
For reveals 3-1/2" - 5-1/2" use special arm 550789
Concealed switch disconnects hold open
Sprayed finishes
Rixson 0601 Electrified Closer-HolderSpecifications
| Application: |
Cross corridor doors - swinging in the same direction |
| Handing: |
Non-handed |
| Maximum Door Weight: |
250 lbs |
| Maximum Door Height: |
Doors up to 4'0" |
| Voltage: |
24VAC/DC 8ma, 120VAC 17ma |
| Weight: |
15 lbs |
| Warranty: |
2 Years Limited Warranty |
| Manufacturer: |
Rixson |
Rixson 0601 Electrified Closer-Holder Certifications
| ANSI: |
C00191 |
| UL: |
UL/ULC Listed |
