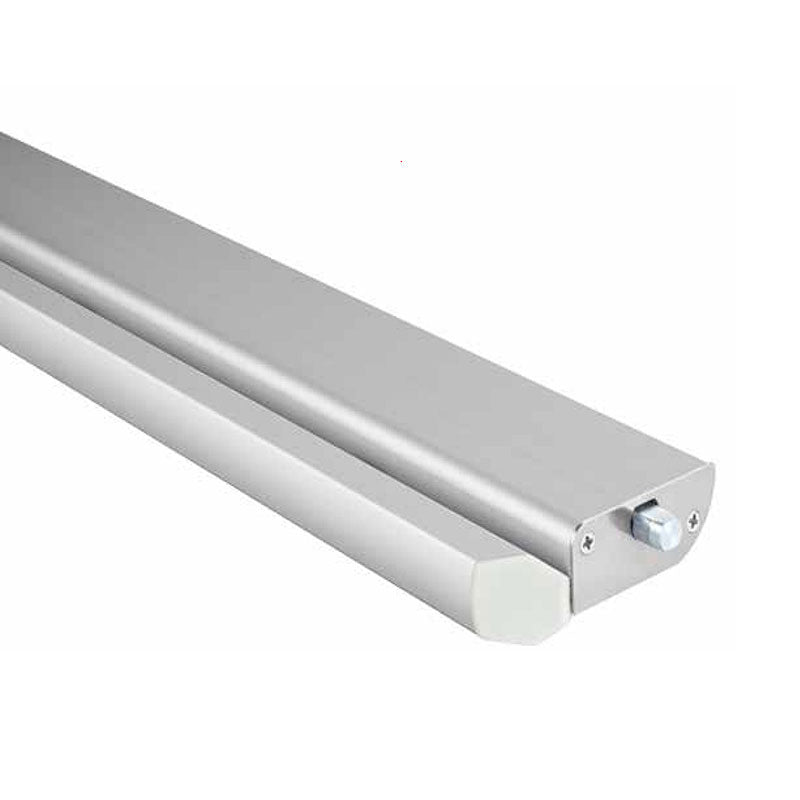

The Pemko ERS-84-C-Notch-HT Continuous Emergency Stop Release is 84" long, is a Flush bolt locking behavioral health hinge, is used on the strike side of the door as a stop,  has a Hospital Tip, is Handed, and comes in Aluminum Finish.

This Product Requires an Order Form to be filled out and submitted, at purchase.
Download Order Form: Click Here
Price Subject to Change.

Doors open 100° in Either Direction:

Pemko Emergency Release Stop with Pemko DSH1000 Double Swing Pin & Barrel Hinge allows the door to open 100° in the opposite direction providing access to the barricaded side of the opening.

Pemko ERS: Flush bolt locking behavioral health hinge

• Used on the strike side of the door as a stop for normal operation.
• During an emergency, the flush bolt (ERS) or multi-point latch (ERSMP) can be released to allow the stop to swing away from the door.
• This allows the door (when used with a Double Swing Hinge) to swing in the opposite direction allowing access to the room.
• Designed for use in a cased opening or on a single rabbet frame
• Comes standard with an access plug secured by a TORX security screw to deter unwanted activation of the flush bolt.
• Hospital tips come standard
• No ERS notch is required with a 2-3/4" or larger hardware trim backset.
• Notched options are available to accommodate shallower backsets, down to a 2-3/4".
• These models require additional information to determine the required location of the notch
• Optional integrated cup pulls are also available.
