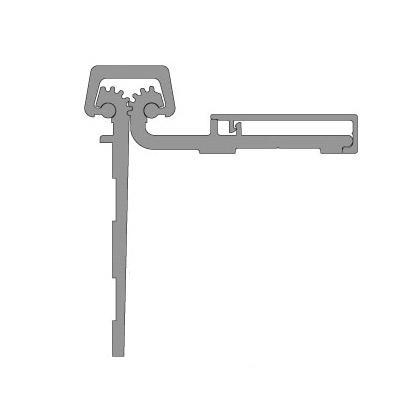

Pemko DHS95 Half-Surface Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"
Pemko's heavy-duty anodized aluminum Half Surface Safety continuous geared hinges are designed mainly for retrofit work in child care and nursing facilities and are applied to the exposed surface of the frame rabbet
Features
Designed for use with hollow metal frames, where the inset conforms to S.D.I. specifications for aligning doors and frames
Allows for adjustments in order to properly align the edge of the door to the frame
Fasteners - Frame Portion - All fasteners are #12-24 x 7/16" FHUC, Type C, thread-forming
Standard model: 16 fasteners required for each leaf
Fasteners - Door Portion - a. Thru-bolt - 1/4-20 x 1-5/8". - Standard Duty Hinges - 4 required. - b. Shoulder Bolt - 1/4-20 x 1" PCH. - Standard Duty Hinges - 4 required. - c. Pan Head Self Drilling #12 x 3/4". - Standard Duty Hinges - 6 required
Standard duty hinge. 6" between bearing centers
Specifications
Finish:
D - Dark Bronze Anodized
Length:
85"
Width:
2" (50.8 mm) (between frame leaf and door leaf edge) Cap Width: 25/32" (19.8 mm)
