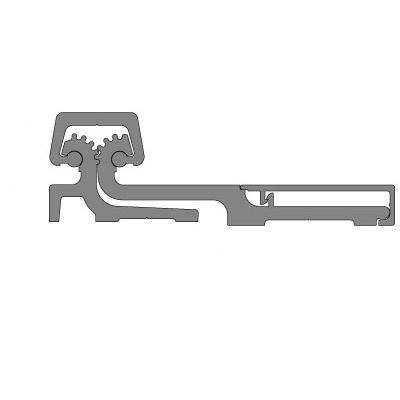

Pemko DFS95HD1 Full-Surface Heavy Duty Continuous Geared Hinge in Dark Bronze Anodized Finish - 95"
Pemko's heavy duty anodized aluminum Full Surface continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame
Features
Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
Applied to conceal both leaves
Standard model: 10 fasteners required for each leaf
Standard duty hinge. 6" between bearing centers
Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Special hinge reinforcements are not required. Hollow metal door and frame manufacturers
