Pemko DFM85SLIHT Full-Mortise Short Leaf Inset Hospital Tip Continuous Hinge in Dark Bronze Anodized - 85"

  • SKU: DFM85SLIHT
Pemko DFM85SLI Continuous Hinge
All PEMKO Products

Pemko DFM85SLIHT Full-Mortise Short Leaf Inset Hospital Tip Continuous Hinge in Dark Bronze Anodized - 85"

  • SKU: DFM85SLIHT
  • ✓
    Available (2‑3 Weeks)
    2-3 Weeks Lead Time
Your Price
Dhs. 1,111.00 /ea

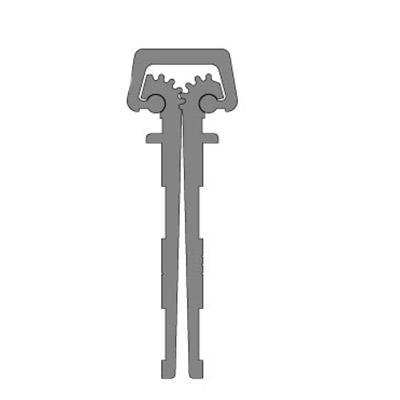

Pemko DFM85SLIHT Full-Mortise Short Leaf Inset Hospital Tip Continuous Geared Hinge in Dark Bronze Anodized Finish - 85", Fire Rated UL10C Positive Pressure

Pemko DFM85SLIHT Full-Mortise Short Leaf Inset Hospital Tip Continuous Geared Hinge in Dark Bronze Anodized Finish - 85", Fire Rated UL10C Positive Pressure. Pemko DFM85SLIHT hospital tipped standard duty anodized aluminum Full Mortise shortleaf inset continuous geared hinges are designed mainly for new door applications. Also available in heavy-duty models

Features:

  • Designed for use with doors that range between 1-3/4" to 2-1/4"
  • Designed for use with hollow metal frames where the inset conforms to S.D.I. specifications for aligning doors and frames
  • Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
Finish: D - Dark Bronze Anodized
Length: 85"
Width: 25/32" (19.8 mm)
Height: 2-3/8" (60.4 mm)
Manufacturer: Pemko
BHMA: BHMA Certified
UL: Fire Rated - UL10C - Positive Pressure
Other Certifications: PemkoHinge Fire Rating - UL76Y2
Product Cut Sheet

Continuous Hinge Handing Chart
