Description

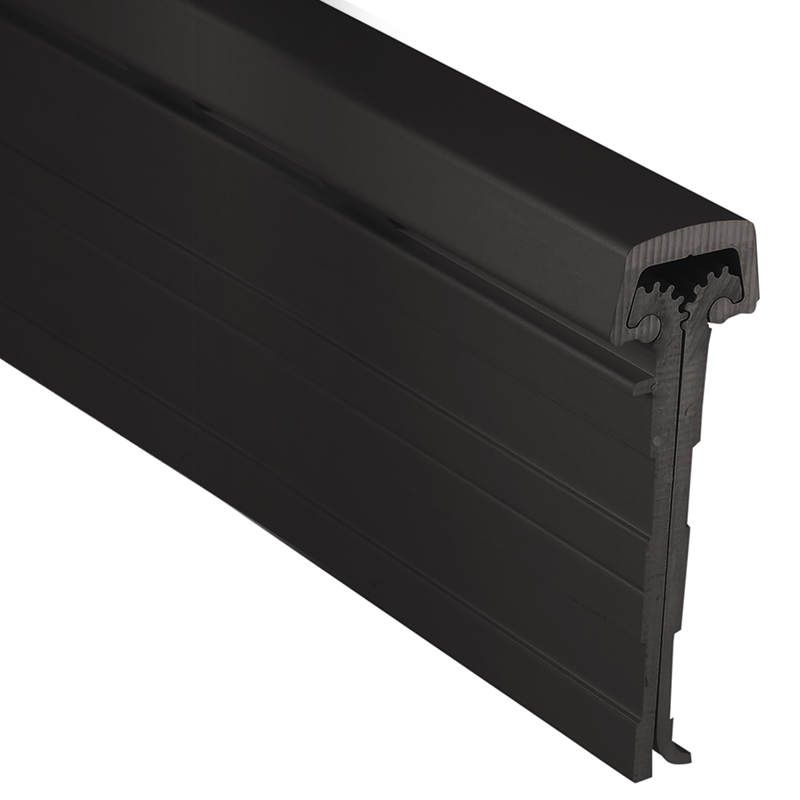

Pemko DFM83 Full-Mortise Continuous Geared Hinge in Dark Bronze Anodized Finish - 83"
Pemko DFM83 standard duty anodized aluminum Full Mortise units are designed mainly for new door applications. Also available in heavy-duty models
Features:
- Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread forming, no tapping required
- Applied to conceal both leaves
Specifications
|
Finish: |
D - Dark Bronze Anodized |
|
Length: |
83" |
|
Width: |
25/32" (19.8 mm) |
|
Height: |
2-9/16" (65.1 mm) |
|
Manufacturer: |
Pemko |
Certifications
|
BHMA: |
BHMA Certified |
|
UL: |
Fire Rated - UL10C - Positive Pressure |
|
Other Certifications: |
PemkoHinge Fire Rating - UL76Y2 |
Document Center
Handing Chart
