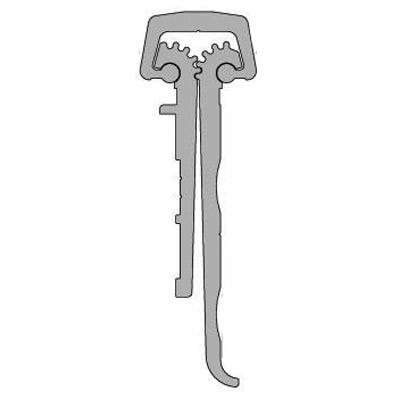

Pemko CSPFM95HD1 Special Heavy Duty Full-Mortise Continuous Geared Hinge in Clear Anodized Finish - 95"
Pemko's heavy duty anodized aluminum Special Full Mortise continuous geared hinges are designed for door and frame applications where the hinge leaf may interfere with the weatherstrip, thermo-break or applied stop to the frame
Features
Applied to conceal both leaves
Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
Standard model: 16 fasteners required for each leaf
Standard duty hinge. 6" between bearing centers
Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also wood core rated up to and including 20 minutes without hose stream
Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Specifications
Finish:
C - Clear Anodized
Length:
95"
Width:
5/16" (7.9 mm) (between frame edge and door edge) Cap Width: 25/32" (19.8 mm)
Height:
1-1/4" (31.8 mm) (to flange/frame edge side) 11/16" (17.5 mm) (frame edge side flange to top of cap)
