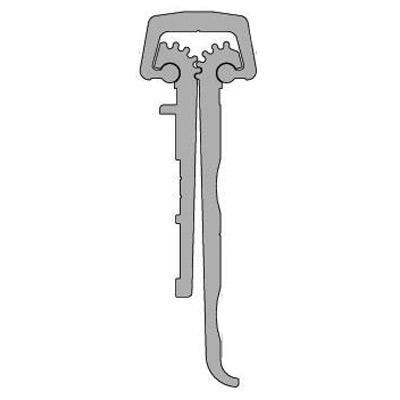

Pemko CSPFM83SLFHD1 Special Heavy Duty Full-Mortise Short Leaf Flush Continuous Geared Hinge in Clear Anodized Finish - 83"

Pemko's heavy-duty anodized aluminum Special Full Mortise - Short Leaf Flush continuous geared hinges are designed for door and frame applications where the hinge leaf may interfere with the weatherstrip, thermo-break or applied stop to the frame

Features

• Applied to conceal both leaves
• Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
• Standard model: 16 fasteners required for each leaf
• Standard duty hinge. 6" between bearing centers
• Tested and certified by Underwriters Laboratories Inc. (the USA and Canada) to standard UL10B, UL10C, and UBC 7.2 (positive pressure) for up to a 3-Hour (A-Label) fire listing for all 4 ft. 0 in. x 10 ft. 0 in. and 8 ft. 0 in. x 10 ft. 0 in. door and frame assemblies. Fire listing certifications apply to all approved hollow metal and wood door assemblies in drywall or masonry construction
• Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80

Specifications

Certifications
