Pemko CFS95CPHD1 Full-Surface Continuous Geared Hinge Heavy Duty Center Pivot Clear Anodized Finish - 95"
Pemko CFS95CPHD1 Full-Surface Continuous Geared Hinge Heavy Duty Center Pivot Clear Anodized Finish, Pemko's CFS95CPHD1 Full-Surface Continuous Geared Hinge heavy-duty anodized aluminum Full Surface Center Pivot continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame
Features CFS95CPHD1 Full-Surface Continuous Geared Hinge
- Easily replace butt hinges since no door or frame adjustments are necessary and are more versatile with restricted frame faces
- Standard model: 12 fasteners required for each leaf
- Fasteners - Frame Portion - All fasteners are #12-24 x 7/16" Phillips Head, Type C, thread-forming
- Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also, wood core rated up to and including 20 minutes without hose stream
- Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Specifications
| Finish: |
C - Clear Anodized |
| Length: |
95" |

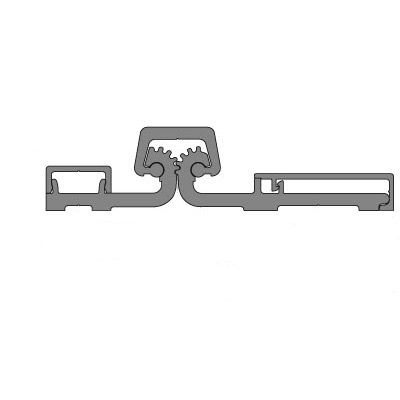

| Width: |
1-3/16" (30.2 mm) (frame side - leaf)
2" (50.8 mm) (door side - leaf)
3-3/16" (80.9 mm) (total width of hinge)
Cap Width: 25/32" (19.8 mm)
|
| Height: |
3/4" (19.1 mm) (total height of hinge) |
| Manufacturer: |
Pemko |
Certifications
| BHMA: |
BHMA Certified |
| UL: |
Fire Rated - UL10C - Positive Pressure |
| Other Certifications: |
PemkoHinge Fire Rating - UL76Y2 |
