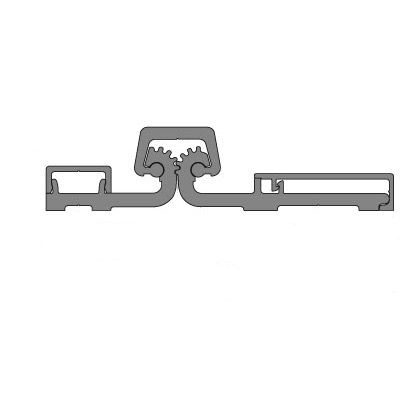

Pemko CFS83CP Continuous Geared Hinge Full-Surface Center Pivot Clear Anodized Finish - 83"

The Pemko CFS83CP Continuous Geared Hinge Full-Surface Center Pivot Clear Anodized Finish, Pemko's standard-duty anodized aluminum Full Surface Center Pivot continuous geared hinges are designed mainly for retrofit work and are applied to the exposed surfaces of the door and frame. Also available in heavy-duty models

Features CFS83CP Continuous Geared Hinge Full-Surface Center Pivot Clear Anodized Finish

• Easily replace butt hinges since no door or frame adjustments are necessary and are more versatile with restricted frame faces
• Standard model: 12 fasteners required for each leaf
• Fasteners - Frame Portion - All fasteners are #12-24 x 7/16" Phillips Head, Type C, thread-forming
• Aluminum continuous hinge for use on swinging type fire doors of the hollow metal, tin-clad, sheet metal, and steel covered composite type rated up to 3 hours, wood covered composite type rated up to and including 1-1/2 hours. Also, wood core rated up to and including 20 minutes without hose stream
• Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
