Description

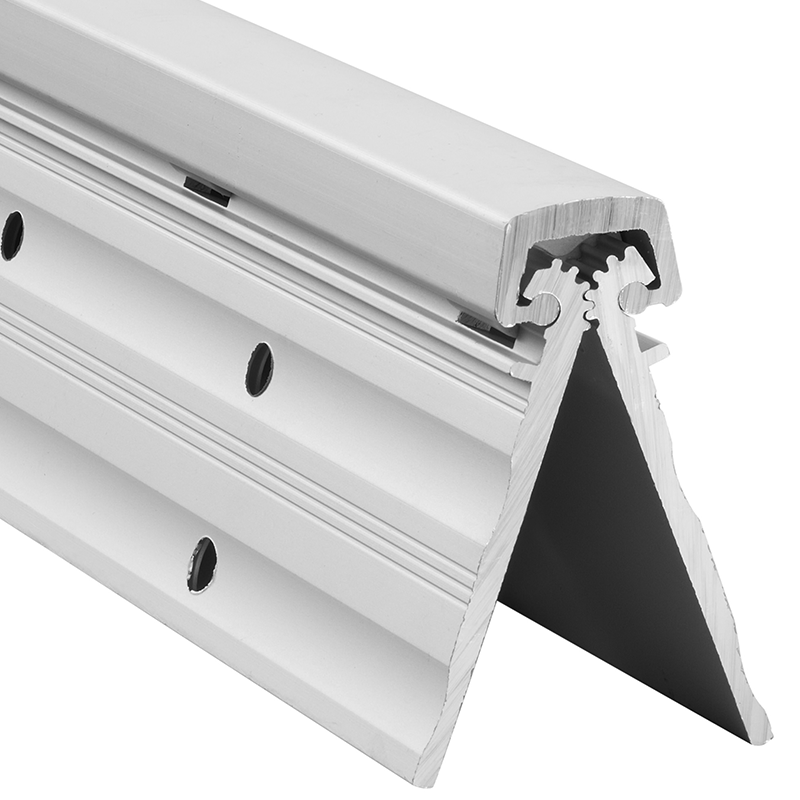

Pemko CFM83SLF-HD1-HT-TORX-RH Short Leaf Flush Full Mortise Continuous Hinge, 83" Length, Hospital Tip, Torx Screws, Half Wood-Metal, Right Handed, Reversible, Clear Anodized Aluminum
Pemko CFM83SLF-HD1-HT-Torx-RH is a Continuous Geared Hinge Full-Mortise Heavy Duty Short Leaf Flush, with a Hospital tip, handed Right Hand, in Clear Anodized Finish, and comes with Half Wood/Metal Torx Screws.
Pemko CFM Hinges Are Designed for use with doors that range between 1-3/4" to 2-1/4", for bifold applications to keep the faces of the doors flush. Pemko CFM Hinges Are Fire Rated - UL10C - Positive Pressure.
Features:
- Designed for use with doors that range between 1-3/4" to 2-1/4"
- Designed for bifold applications to keep the faces of the doors flush
Specifications
Finish: |
C - Clear Anodized |
Length: |
83" |
Width: |
25/32" (19.8 mm) |
Height: |
2-3/8" (60.4 mm) |
Manufacturer: |
Pemko |
Certifications
BHMA: |
BHMA Certified |
UL: |
Fire Rated - UL10C - Positive Pressure |
Other Certifications: |
PemkoHinge Fire Rating - UL76Y2 |
Document Center
Handing Chart
