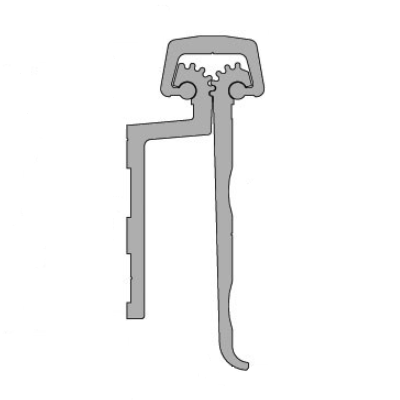

Pemko CFM83SFHD1 Full-Mortise Heavy Duty Safety Continuous Geared Hinge Clear Anodized Finish - 83"
Pemko CFM83SFHD1-83" Full-Mortise Heavy Duty Safety Continuous Geared Hinge Clear Anodized Finish, The Pemko's CFM83SFHD1 heavy-duty anodized aluminum Full Mortise Safety continuous geared hinges are designed mainly for new door applications in child care and nursing facilities. These hinges require extra clearance
Features CFM83SFHD1
Applied to conceal both leaves
Fasteners are No. 12-24 x 7/16" FHUC, Type C, thread-forming
Standard model: 16 fasteners required for each leaf
Standard duty hinge. 6" between bearing centers
Certain door and frame conditions may require an extra 1/32"-1/16" clearance. Excessive clearance on fire-rated assemblies may violate the requirements for NFPA 80
Specifications
Finish:
C - Clear Anodized
Length:
83"
Width:
13/16" (20.6 mm) (between frame edge and door edge, square edge door applications) 27/32" (21.4 mm) (between frame edge and door edge, beveled edge door applications)
Height:
2-9/16" (65.1 mm) (to top cap/frame edge & door edge sides) 1-1/2" (38.1 mm) (frame edge side - leaf)
