Pemko 4301DRL Automatic Door Bottom - 29/32” Width, 1-25/32" Height, Sponge Neoprene Insert Dark Bronze Anodized Aluminum

  • SKU: 4301DRL36
Dhs. 522.00/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time
Pemko Length: 36" Long

Pemko 4301DRL Automatic Door Bottom - 29/32” Width, 1-25/32" Height, Sponge Neoprene Insert Dark Bronze Anodized Aluminum

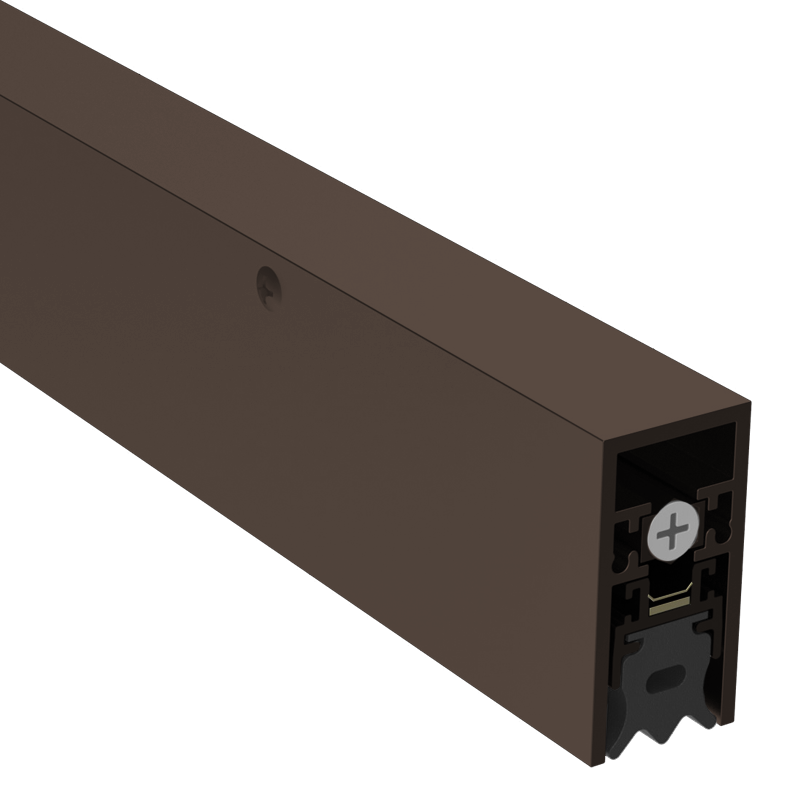

Pemko 4301DRL Automatic door bottom has a 29/32” Width, 1-25/32" Height, and comes in 36" or 48" Lengths with a Sponge Neoprene Insert in Dark Bronze Anodized Aluminum. Pemko 4301DRL consists of an aluminum case that surrounds a movable drop-bar seal. The Pemko 4301 drop bar seal is actuated by a plunger that contacts the jamb as the door is closing, forcing the drop bar to seal down against the floor or threshold.

Available Finishes:

C - Clear Anodized Aluminum

D - Dark Bronze Anodized Aluminum

Insert:

Sponge Neoprene

Width:

29/32” (23.0 mm)

Height:

1-25/32” (45.2 mm)

Manufacturer:

Pemko

BHMA:

BHMA Certified

UL:

Underwriters Laboratory 4L10

Fire Rated - UL10C - Positive Pressure

Other Certifications:

Air Infiltration Tested

Sound Tested - ASTM E90

Smoke Tested - UL1784



Product Cut Sheet
