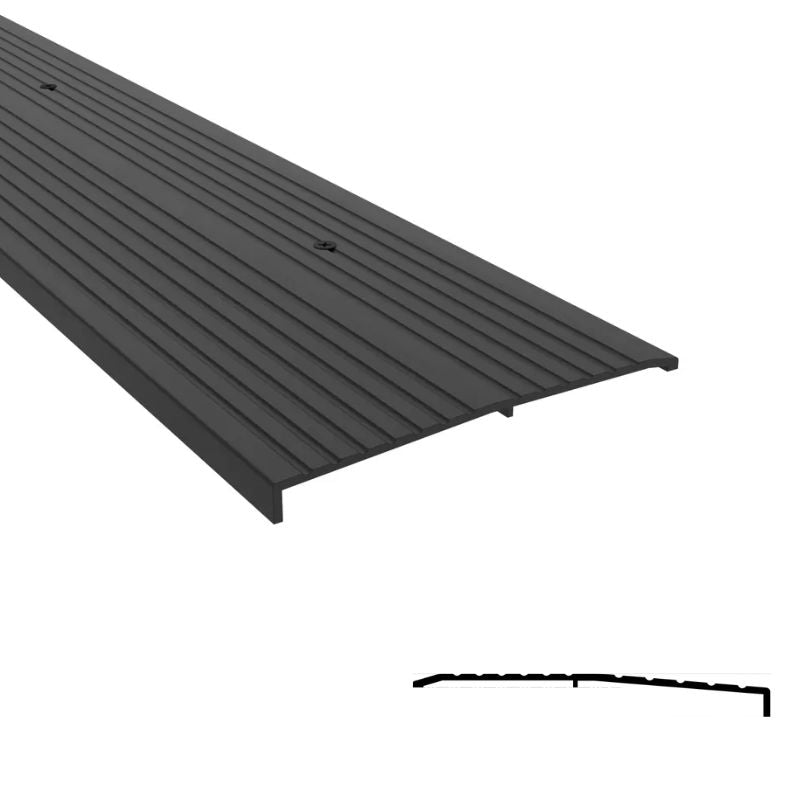

The Pemko 257BSP barrier-free ramp saddle threshold measures 6" in width and has a height of 3/4". It is coated with a black suede powder finish for added durability.
Pemko 257 Features:
Only ADA compliant when used in conjunction with 259_
Use 257_ and 259_ together, or use 257_ with an abutted 1:12 concrete slope.
Supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
When used as a cover plate assembly (see Commercial Thresholds section), a longer spindle may be required.
Used in an offset condition
Specifications
Available Finishes:
BSP - Black Suede Powder Coat
Width:
6" (152.4 mm)
Height:
1/2" (12.7 mm)
Manufacturer:
Pemko
Certifications
BHMA:
BHMA Certified
UL:
Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure
