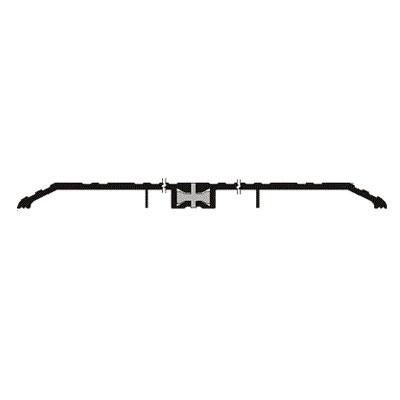

The Pemko 255X5AFG Thermal Barrier Door Saddle thresholds have a 10.125" width and a 1/2" height. Comes in 36", 48", 72" & 96" lengths, Mill Finish Aluminum.
AVAILABLE FINISHES:
A - Mill Finish Aluminum Aluminum
B - Mill Finish Brass Extruded Bronze (Brass)
D - Dark Bronze Anodized Aluminum
G - Gold Anodized Aluminum
WIDTH: 10-1/8” (257.2 mm)
HEIGHT: 1/2” (12.7 mm)
Installation Instruction
1. Measure the width of the door opening from jamb to jamb and stop to stop and mark ends of the threshold for trimming.
2. Trim ends of threshold to fit around door jambs and stops. Position threshold so that vinyl seal contacts the face of the door along the entire width when the door is closed (see below illustration).
3. Drill pilot holes in the floor through pre-drilled holes in the threshold.
4. Caulk ends of threshold and under the full length of legs (important for effective sealing and moisture control).
5. Secure threshold to the floor with supplied screws. (When fastening to concrete, use anchors; anchors not included.)
Ratings
Barrier-Free
BHMA Certified
