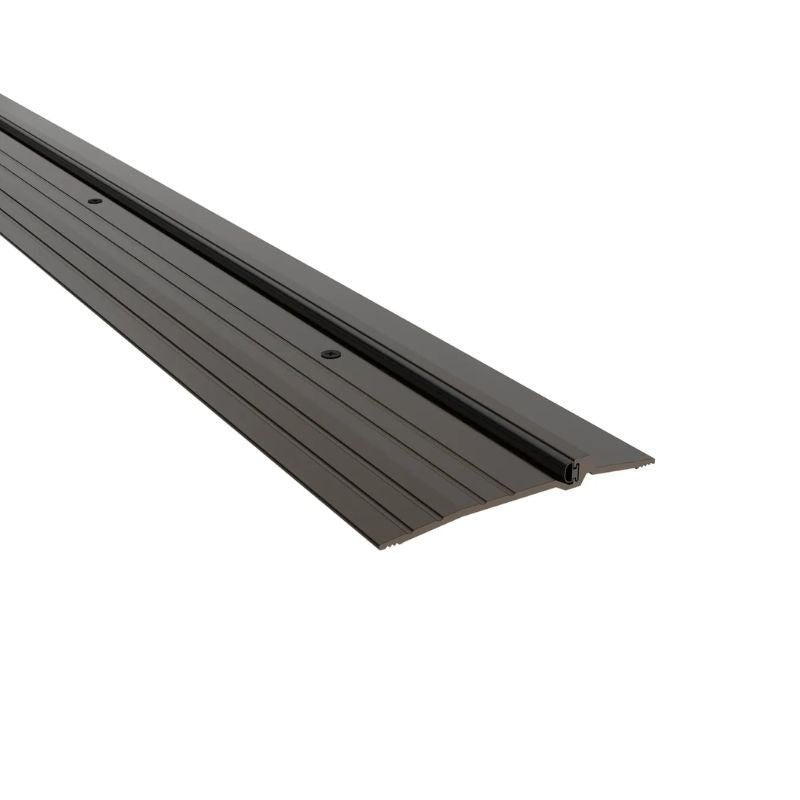

Pemko 2005DV Latching Panic Exit Commercial Door Saddle Thresholds have a 5" Width, 1/2" Height, come in 36", 48", 72", and 96" Lengths with a Vinyl Insert, in Dark Bronze Anodized Aluminum.
Pemko 2005DV Is a Latching Panic thresholds are designed to work in conjunction with surface applied vertical rod exit devices. They are also used to provide a doorstop and seal at the bottom of the door
Features Pemko 2005DV
Latching Panic thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
Allow 3/8" door clearance
Specifications
Available Finishes:
A - Mill Finish Aluminum Aluminum D - Dark Bronze Anodized Aluminum G - Gold Anodized Aluminum
Insert:
Vinyl
Width:
5" (127 mm)
Height:
1/2" (12.7 mm)
Manufacturer:
Pemko
Certifications
BHMA:
BHMA Certified
UL:
Underwriters Laboratory 4L10 Fire Rated - UL10C - Positive Pressure
Other Certifications:
Air Infiltration Tested Sound Tested - ASTM E90 Barrier-Free
