Pemko 2005AT Latching Panic Exit Threshold 5" Inch

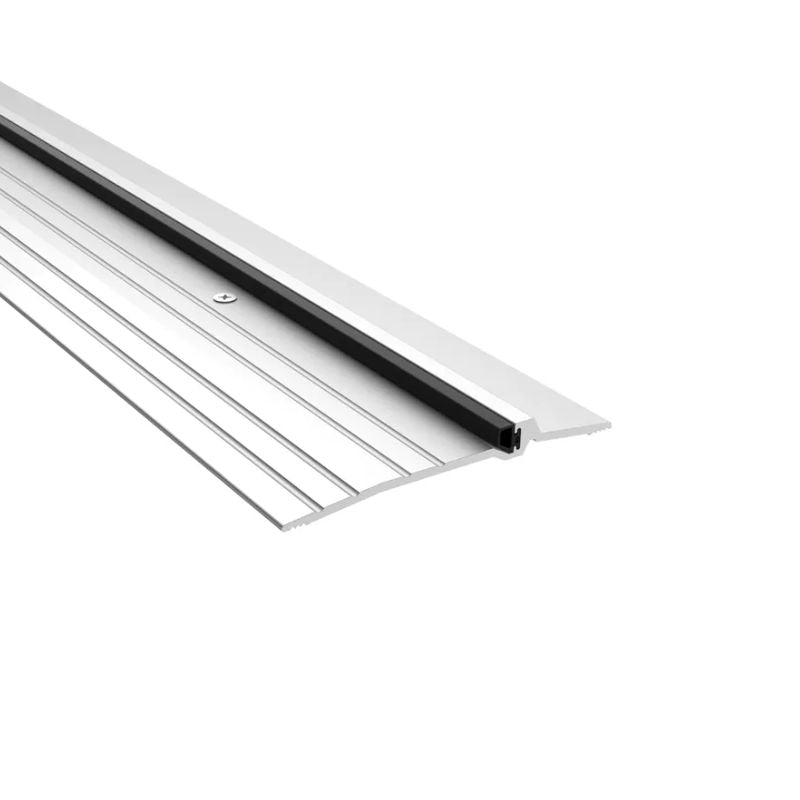

The Pemko 2005AT Latching Panic Exit Threshold comes in 5" Width, and 1/2" Height, in 36", 48", 72", and 96" Lengths. This device includes ThermoSeal Insert in Dark Bronze Anodized Aluminum. The Pemko 2005AT Latching Panic thresholds are designed to work in conjunction with surface-applied vertical rod exit devices.
- Latching Panic thresholds are supplied predrilled, with #10-24 Phillips, flat head machine screws of appropriate length
- Allow 3/8" door clearance.
- The Pemko 2005AT Latching Panic Exit Threshold, is also used to provide a doorstop and seal at the bottom of a commercial door.
CROSS-REFERENCE: NGP: 896 - Zero: 65
Certifications Pemko 2005AT Latching Panic Exit Threshold
| BHMA: |
BHMA Certified |
| UL: |
Underwriters Laboratory 4L10
Fire Rated - UL10C - Positive Pressure
|
| Other Certifications: |
Air Infiltration Tested
Sound Tested - ASTM E90
Barrier-Free
|
Pemko 2005AT Latching Panic Exit Threshold
The diagram shows the detailed dimensions of the 2005AT and will help you will select the correct commercial door latching panic exit threshold.
