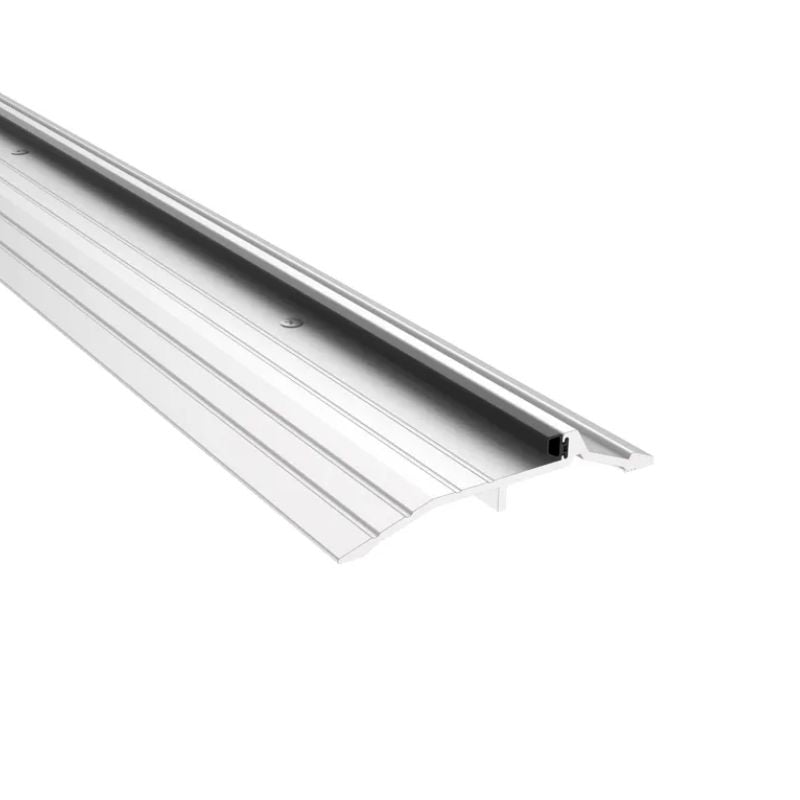

Pemko 177AT Long Latching Panic Exit Saddles have a 5" Width, with a 7/8" Height. The Pemko 177AT comes in 36", 48", 72", and 96" Lengths in a ThermoSeal Insert Mill Finish Aluminum

Pemko 177AT Latching Saddle Features

• Thresholds are designed to work in conjunction with surface applied vertical rod exit devices.
• Pemko Latching Panic Exit Saddle is also used to provide a doorstop and seal at the bottom of the door
• PRODUCT TESTING: • GreenGuard GOLD Certification – Tested to UL2818 and achieved GOLD certification for low V.O.C. content – ulspot.com for certificate
• Air Infiltration Tested – Tested to ASTM E-283-04 (2012) for low air leakage allowance; allows no more than 0.3 cfm per square foot at 1.57 psf.
• Sound Tested – Tested to ASTM E90 – 2009 in a single or in multiple sound seal configurations for sound attenuation in an opening
• MATERIAL: Thermoseal (TPE) Gasket, 6063-T6 Aluminum Alloy, and Temper Saddle

Installation-

1. Carefully cope to fit within the frame opening making sure the seal will make contact with the door face.                                                                                              2. Trim seal 1/16” longer than the threshold at each end. Use a sealant or compound at all edges and joints.                                                                                                      3. Fasten with screws provided.

Pemko 177AT Latching Saddle Specifications

Certifications
