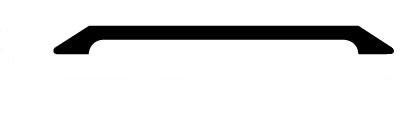

Pemko 151D Saddle Threshold - 3" Width, 1/4" Height, Dark Bronze Anodized Aluminum, Fire Rated UL10C Positive Pressure, Available in 36", 48",72", and 96" lengths
Specifications
| Available Finishes: |
A - Mill Finish Aluminum Aluminum
D - Dark Bronze Anodized Aluminum
G - Gold Anodized Aluminum |
| Width: |
3" (76.20 mm) |
| Height: |
1/4" (6.4 mm) |
| Manufacturer: |
Pemko |
WARRANTY: 5 Years from purchase date
CROSS-REFERENCE: Draftseal: DS3000; Hager 418; NGP: 411; Reese: S263; Zero/Allegion: 63
PRODUCT TESTING:
• Barrier-Free (ADA) – Meets the requirements of ADAAG-2010 (Amended) and ANSI A117.1-2009 for:
• Overall height is no greater than ½”
• A vertical rise no more than ¼” and/or change in elevation being beveled with a slope of 1:2
• Does not require more than 5lbs of operating force
• Non-Skid/Pemkote – Meets the requirements of ASTM D 2047, UL 410, and Federal Specifications PF-430C for high static coefficient of friction resulting in a slip resistance surface
• Fire Rated – Tested to UL10B Standard Fire Tests and UL10C Positive Pressure Fire Tests of Door Assemblies
• BHMA Certified – Tested for performance with regards to the requirements in • ANSI/BHMA A156.21 – Thresholds
| BHMA: |
BHMA Certified |
| UL: |
Underwriters Laboratory 4L10
Fire Rated - UL10C - Positive Pressure |
| Other Certifications: |
Barrier-Free |
