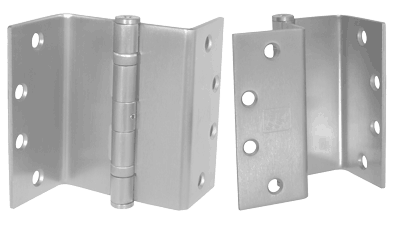

PBB SCBB81-5-Square Standard Weight Full Mortise Ball Bearing Swing Clear Hinge, 5 inch
The PBB SCBB81-5 is a 5-inch full mortise ball bearing hinge with square configuration, designed for standard-weight door applications. Its ball bearing mechanism ensures smooth, consistent swing action while minimizing wear on door frames and jambs. Built for durability in high-traffic commercial and institutional settings.
Features
- For medium weight doors receiving average frequency service
- Full Mortise, For Square Door
- Steel
- All hinges are ANSI template
- All swing clear hinges are made for reversible applications
- Designed to swing doors completely clear of the opening when the door is opened 95 º
- When opened 90 º door projects 3/32" past stop of the jamb
- Recommended for 3'0" x 7'0" x 1-3/4" doors not to exceed 150 lbs
Specifications
| General Product Information: |
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
| Material: |
Steel-Polished and Plated or Bonderized and Prime Coated for Painting |
| Clearance: |
Minimum Clearance Required
Dimension (inches) 2-1/8" |
| Material Gauge: |
.146 ± .005 for 5" |
| Size: |
5" (+.000/-.015) for 5" |
| Standard Screw Size: |
FHMS - 12-24 x 1/2"
FHWS - 12 x 1-1/4"
|
| Packing Information: |
One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton.
12 unit carton or 36 hinges per master shipping carton.
1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS is also available.
|
| Manufacturer: |
PBB Inc. |
