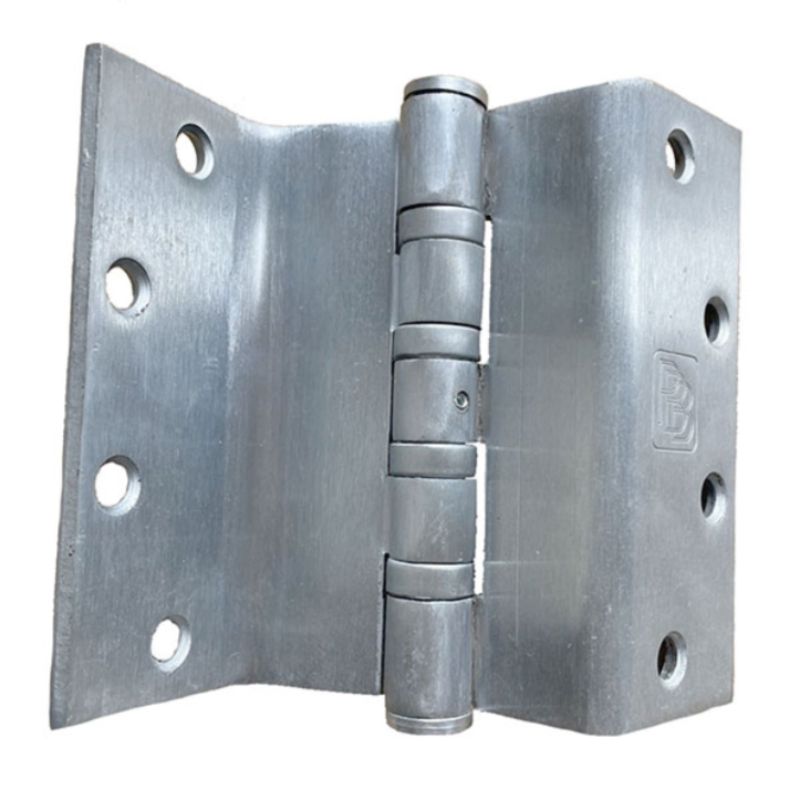

PBB SC4B81 4 1/2” Beveled US26D Heavy Weight Full Mortise Ball Bearing Swing Clear Hinge, Satin Chrome Finish

Technical Specs

Product Specs

PBB SC4B81 4 1/2” Beveled US26D Heavy Weight Full Mortise Ball Bearing Swing Clear Hinge, 4 1/2 inch, 626 Satin Chrome Finish

The PBB SC4B81 is a 4 1/2 inch heavy weight full mortise ball bearing swing clear hinge, with a beveled design and a sleek satin chrome finish in US26D. This durable hinge is perfect for any door, providing smooth and secure movement.

Features:

• All swing clear hinges are made for reversible applications.
• Designed to swing doors completely clear of the opening when the door is opened 95º. When opened, the 90º door projects 11/64” past the stop of the jamb.

• For heavy-weight doors receiving high-frequency service.

• For hospital type, add HT to the suffix of the part number.
• All hinges are ANSI templates.
