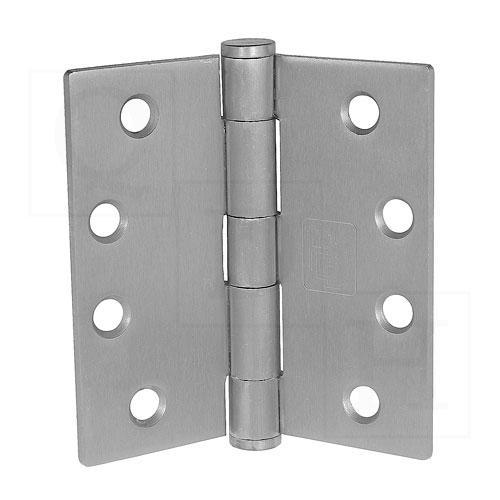

PBB PB81 4“ x 4” Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle

  • SKU: PB814040USP
PBB PB81 4" x 4" Plain Bearing
PBB PB81 4" x 4" Plain Bearing
All PBB Products

PBB PB81 4“ x 4” Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle

  • SKU: PB814040USP
Dhs. 48.00/ea
In Stock
In Stock
Pbb Finish: USP Primed for Painting (600)
Pbb Pin Option: Standard (with removable pin)

PBB PB81 4 x 4 Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle

PBB PB81 4 x 4 Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle, For use on medium weight doors or doors requiring low-frequency service.

Features

  • Full Mortise
  • Wrought Steel
  • For Standard weight door
  • All hinges are ANSI template

Specifications

General Product Information: PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)
Material: Stainless Steel-Polished and Satin Finish
Material Gauge: .130 ± .005
Size: Height: 4.00 (+.000/-.015)
Width: 4.00 (+.000/-.015)
Standard Screw Size: FHMS - 12-24 x 1/2"
FHWS - 12 x 1-1/4"
Packing Information:

One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton
16 unit carton or 48 hinges per master shipping carton
1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS also available
Manufacturer: PBB Inc.

Certifications

ANSI: A8133
Product Cut Sheet
