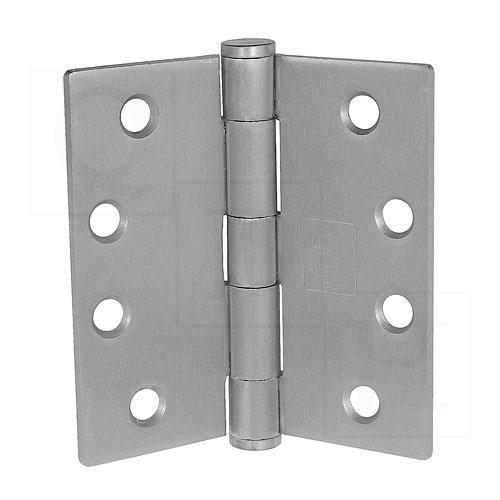

PBB PB21 4"x 4" Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle
PBB PB21 4" x 4" Plain Bearing Hinge Full Mortise Standard Weight 5-Knuckle, PB21 Is For use on medium-weight doors or doors requiring low-frequency service.
Features:
Full Mortise
Wrought Brass
3", 3-1/2", 4" available in square, 5/8" and 1/4" Radius Round Corners
All hinges are ANSI template
Specifications
General Product Information:
PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)
Material:
Brass - Polished and Plated
Material Gauge:
.130 ± .005
Size:
Height: 4.00 (+.000/-.015)
Width: 4.00 (+.000/-.015)
Standard Screw Size:
FHMS - 12-24 x 1/2"
FHWS - 12 x 1-1/4"
Packing Information:
One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton
16 unit carton or 48 hinges per master shipping carton
1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS also available
