PBB CB81 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Standard Weight, Dull Chromium

SKU: CB814545US26D

All PBB Products

PBB CB81 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Standard Weight, Dull Chromium

SKU: CB814545US26D

Dhs. 72.00/ea

In Stock

In Stock

Choose your options

Pbb Pin Option: Standard (with removable pin)

Variant

Quantity:

Qty

Send2Mobile

Description
Specifications
Certifications
Document Center

Description

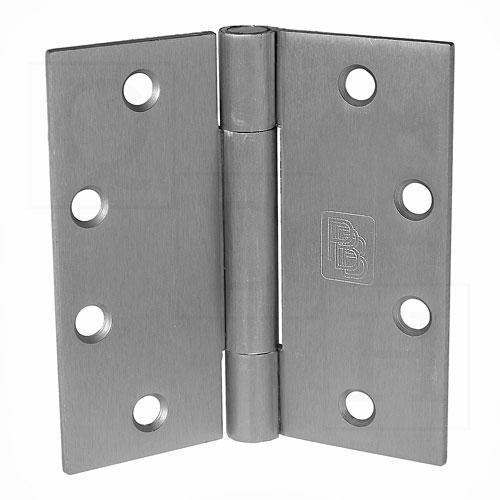

PBB CB81 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Standard Weight, US26D / 652 - Dull Chromium

PBB CB81 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Standard Weight, For medium weight doors receiving medium frequency service. Concealed bearing for trouble-free long-life application, CB81 Features, Full Mortise, Wrought Steel, Non-rising removable pin, Hole in the bottom tip for easy pin removal, Attractive slim barrel with flush pins and plugs, May be used on fire-rated openings, All hinges are ANSI template

Specifications

General Product Information:	PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)
Material:	Steel-Polished and Plated or Bonderized and Prime Coated for Painting
Material Gauge:	.134 ± .005
Size:	Height: 4.50 (+.000/-.015) Width: 4.50 (+.000/-.015)
Standard Screw Size:	FHMS - 12-24 x 1/2" FHWS - 12 x 1-1/4"
Packing Information:	One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton 16 unit carton or 48 hinges per master shipping carton 1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMs & AWS also available
Manufacturer:	PBB Inc.
