Description

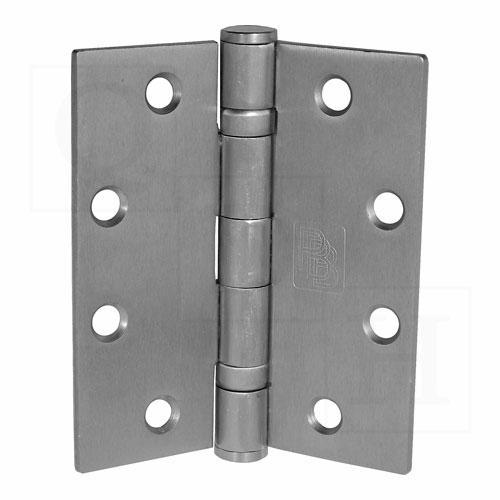

PBB BB21 4-1/2" x 4" Ball Bearing Hinge 5-Knuckle Full Mortise Standard Weight
PBB BB21 4-1/2" x 4" Ball Bearing Hinge 5-Knuckle Full Mortise Standard Weight. PBB BB21 Hinges Are For use on standard weight doors or doors receiving average frequency usage. Ball-bearing type hinges must be used on doors in conjunction with door closers and on all fire-rated openings
Features
- Full Mortise
- Wrought Brass
- All hinges are ANSI template
Specifications
| General Product Information: | PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI) |
| Material: | Brass -Polished and Plated |
| Hinge Swaging: | A standard swaging of our standard weight full mortise hinge, when closed to a parallel position, provides a 1/16" clearance between leaves |
| Material Gauge: | .134 ± .005 |
| Size: |
Height: 4.50 (+.000/-.015) Width: 4.00 (+.000/-.015) |
| Standard Screw Size: |
FHMS - 12-24 x 1/2" FHWS - 12 x 1-1/4" |
| Packing Information: |
One hinge per plastic bag, 3 hinges, and 1 screw pack per unit carton 16 unit carton or 48 hinges per master shipping carton 1 screw pack includes all machine screws (24), and 1/2 wood screws (12). ATMS & AWS also available |
| Manufacturer: | PBB Inc. |
Certifications
| ANSI: | A2112 |
