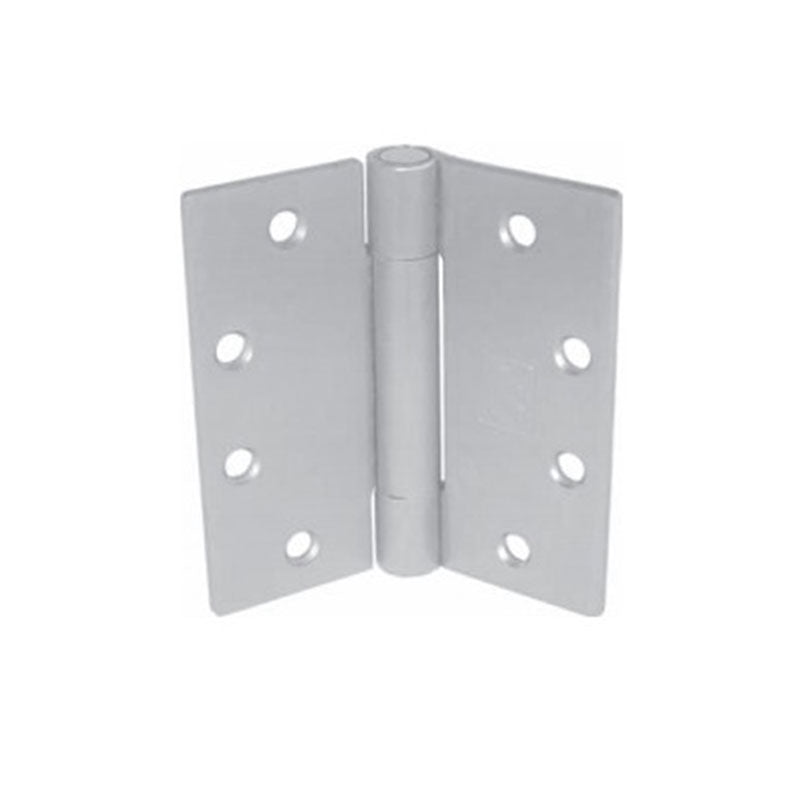

PBB 4C51 4 1/2” x 4 1/2” US32D Stainless Steel Full Mortise Concealed Bearing Heavy Weight Hinge, Stainless Steel Finish

SKU: 4C514545US32D

All PBB Products

Description
Document Center

Description

PBB 4C51 4-1/2" x 4-1/2" US32D is a Stainless Steel constructed Full Mortise, Concealed Bearing Heavy Weight hinge and comes in US32D Stain Stainless Steel.

PBB 4C51 4-1/2" x 4-1/2" Concealed Bearing Hinge 3-Knuckle Full Mortise Heavy Weight, For use on heavy doors or doors receiving high-frequency usage. Concealed bearing-type hinges must be used on doors in conjunction with door closers and on all fire-rated openings.

Features

Concealed bearing for trouble-free long-life application
Full Mortise
Non-rising removable pin.
All hinges are ANSI template
Attractive slim barrel with flush pins and plugs.
Ball bearing hinges must be used on doors in conjunction with door closers and on all fire rated openings.

Specifications

General Product Information:	PBB, Inc. template hinges are manufactured to close tolerances and meet all specifications and requirements set by the American National Standards Institute (ANSI)
Material:	Steel-Polished and Plated or Bonderized and Prime Coated for Painting
Hinge Swaging:	A standard swaging of our standard weight full mortise hinge, when closed to a parallel position, provides a 1/16" clearance between leaves
Material Gauge:	.180 ± .005
Size:	Height: 4.50 (+.000/-.015) Width: 4.50 (+.000/-.015)
Standard Screw Size:	FHMS - 12-24 x 1/2" FHWS - 12 x 1-1/4"
Manufacturer:	PBB Inc.
