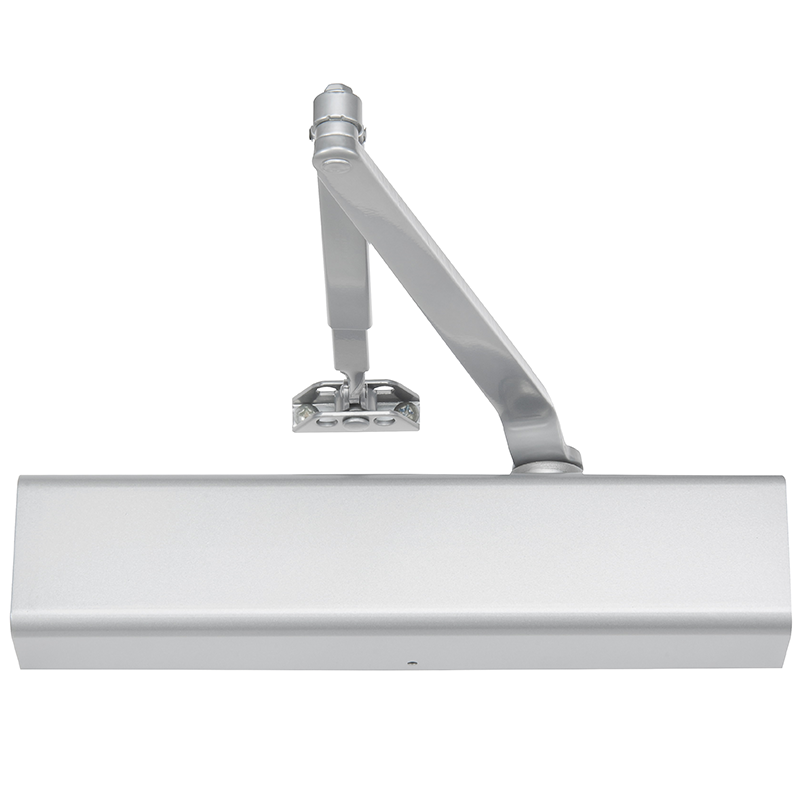

Norton 8501 Surface Mounted Door Closer, Push or Pull Side, Double Lever Arm Regular

  • SKU: 8501689
Norton-8501-689
Norton-8501-689
Norton 8501 Surface Mounted Door Closer, Push or Pull Side, Double Lever Arm Regular
Norton 8501 Surface Mounted Door Closer, Push or Pull Side, Double Lever Arm Regular
Norton 8501 Surface Mounted Door Closer, Push or Pull Side, Double Lever Arm Regular
Norton-8501-696
Norton-8501-691
Norton-8501-690
All NORTON Products

Norton 8501 Surface Mounted Door Closer, Push or Pull Side, Double Lever Arm Regular

  • SKU: 8501689
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 967.00/ea
Finish: 689 Aluminum
Handing Guide:
handing chart image

Buy Complete Door Hardware Set

?
Door hardware to Complete Your Set
Norton 8501 Surface Mounted Door Clos...
Quantity
–
+
Dhs. 967.00
McKinney TA2714-4 1/2 x 4 1/2 Full Mo...
Quantity
–
+
From Dhs. 53.00
Tell LC2400 Series Heavy Duty Grade 2...
Quantity
–
+
From Dhs. 189.00
Rockwood K1050-8-US32D Metal Kick Pla...
Quantity
–
+
From Dhs. 143.00
Total

Norton 8501 Surface Mounted Door Closer, Push or Pull Side, Double Lever Arm Regular, Grade 1, Tri-Packed, Adjustable Size 1 to 6, Plastic Cover, Non-Handed

The Norton 8501 Surface Mounted Door Closer is a Grade 1, Tri-Packed product that is adjustable from size 1 to 6. It has a Double Lever Arm Regular design and is suitable for both push or pull side installation. Additionally, it features a Plastic Cover and is Non-Handed.

Norton 8501 Series Closers

Architectural Tri-Style® door closer.

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.
  • Exceeds 15 million cycles (witnessed and verified by UL)
  • Adjustable spring sizes 1 through 6
  • Tri-Style® packaging standard (regular arm, top jamb and parallel arm mounting)
  • Non-handed
  • Staked valves
  • Cast aluminum body
  • Rack and pinion design
  • 1-1/4" (32mm) diameter piston
  • 5/8" (16mm) diameter pinion journals
  • 2-1/8" (54mm) projection (standard covers)
  • All standard arm applications (with slim, full or metal covers) allow doors to swing 180 degrees, conditions permitting
  • Full size template
  • Metal, architectural plastic or architectural metal covers (8501 only)
  • Lead lined metal cover - suffix MLL
  • Application specific arms: Regular (S), Top Jamb (JS) and Parallel (P)
  • Heavy-duty arms; Regular Rigid, Parallel Rigid, CloserPlus®, CloserPlus Spring™, Unitrol®
  • Slide Tracks: push or pull side mounting
  • 25-year limited warranty
Manufacturer Norton
SKU 8501
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 10C
ANSI Number ANSI A156.4
BAA Qualified Yes
Limited Warranty 25 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes
Type Surface
Technology Hydraulic
Mounting Location Push or Pull Side
Mounting Style Tri Mount
Hold Open No
Closer Size 1 to 6
Arm Type Double Lever Arm, Regular
Hand Non-Handed
Back Check Adjustable
Cover Plastic
Cold Weather Fluid Yes
Product Type Surface Closers
Product Cut Sheet
