Description

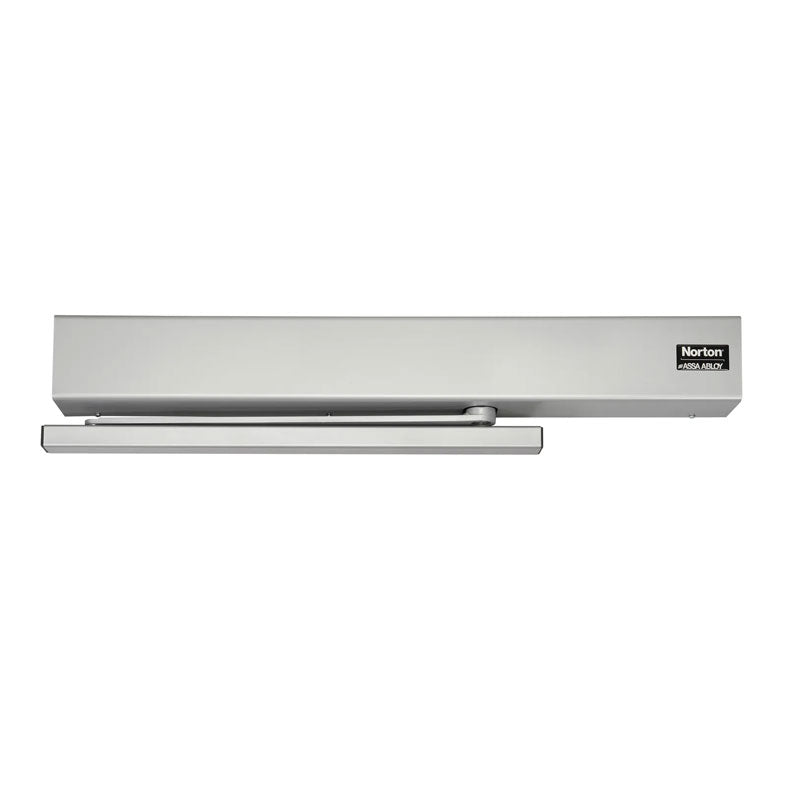

The Norton 7253MPSO-24VDC-689 is a Electromechanical Closer, with a Double Egress Arm Slide Track, that has a 1/8" - 3" Reveal, goes 110 Degrees, is Size "3", has MPSO Selective Hold Open Support, is 24VDC, is handed and comes in 689 Aluminum finish. The Norton 7253MPSO-24VDC-689 is for use with doors up to 40" wide.
The 7200 Series electromechanical closer/holder combines the functionality of an electromechanical door holder with the proven reliability of a 7700 Series door closer.
Features
- Multi-point hold open
- Fixed spring sizes 3, 4, or 5
- Push or pull side mounting (frame mounted)
- Adjustable sweep and latch speed valves
- Handed
- Adjustable backcheck cushioning and position valve
- Selective hold open (SHO) allows door to hold open at any degree of opening beyond a pre-set hold open point, up to 175°
- Metal covers
- Fail safe: solenoid will de-energize in the event of power failure
- Concealed or surface wiring
- Minimum 4" ceiling required
- Auxiliary door stop is required for doors opening beyond 125° (pull side mounting)
Benefits
- Adjustable hold open position allows application flexibility
- Connected free swing arm option allows door to be held open at any degree
- Doors automatically close if activated by fire alarm
Certifications
ANSI/BHMA: | ANSI/BHMA A156.15 |
UL: | UL 10C positive pressure. UL-cUL Fire-Rated Up to 3 Hours. |
Document Center
Handing Chart
