All MCKINNEY Products

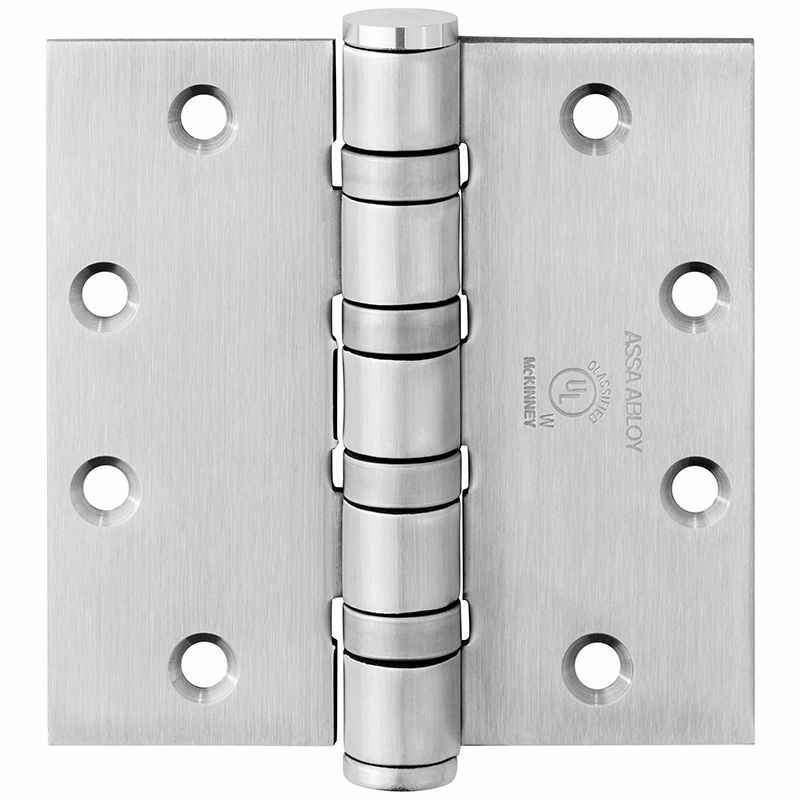

McKinney T4A3786 4 1/2" x 4 1/2" Full Mortise Heavy Weight Bearing Hinge, Five Knuckle

  • SKU: T4A37864545US26D
McKinney T4A3786 4.5x4.5 Five Knuckle Heavy Weight Hinge
McKinney T4A3786 4 1/2" x 4 1/2"-US10
McKinney T4A3786 4 1/2" x 4 1/2"-US10B
McKinney T4A3786 4 1/2" x 4 1/2"-US26
McKinney T4A3786 4 1/2" x 4 1/2"-US3
McKinney T4A3786 4 1/2" x 4 1/2"-US4
McKinney T4A3786 4 1/2" x 4 1/2"-USP
McKinney T4A3786 4.5x4.5 Five Knuckle Heavy Weight Hinge
McKinney T4A3786 4 1/2" x 4 1/2"-US10
McKinney T4A3786 4 1/2" x 4 1/2"-US10B
McKinney T4A3786 4 1/2" x 4 1/2"-US26
McKinney T4A3786 4 1/2" x 4 1/2"-US3
McKinney T4A3786 4 1/2" x 4 1/2"-US4
McKinney T4A3786 4 1/2" x 4 1/2"-USP
All MCKINNEY Products

McKinney T4A3786 4 1/2" x 4 1/2" Full Mortise Heavy Weight Bearing Hinge, Five Knuckle

  • SKU: T4A37864545US26D
Dhs. 86.00/ea
In Stock
In Stock
McKinney Finishes: US26D - Satin Chrome

McKinney HT4A3786-4 1/2 X 4 1/2 Full Mortise Heavy Weight Bearing Hinge, Five Knuckle, Hospital Tip, 4 1/2" x 4 1/2", Square Corner, Square Corner

The McKinney HT4A3786 is a 4 1/2" x 4 1/2" full mortise hinge designed for heavy weight bearing applications. Featuring five knuckles and a hospital tip, this hinge offers durable performance with a square corner design for precise fitting.

Features

  • Full Mortise
  • 5 Knuckle
  • Recommended for use on extra heavy doors or those exposed to high-frequency use.
  • Steel base material
  • Finishes available: US3, US4, US10, US10B, US26, US26D, P.
  • The gauge of metal: .180
Material: Steel
Hinge Size: 4 1/2" x 4 1/2"
Wood Screw: 1-1/4 x 12 F.H.
Machine Screws: 1/2 x12-24 F.H
Number of Holes: 8
ANSI: A8111
Product Cut Sheet
