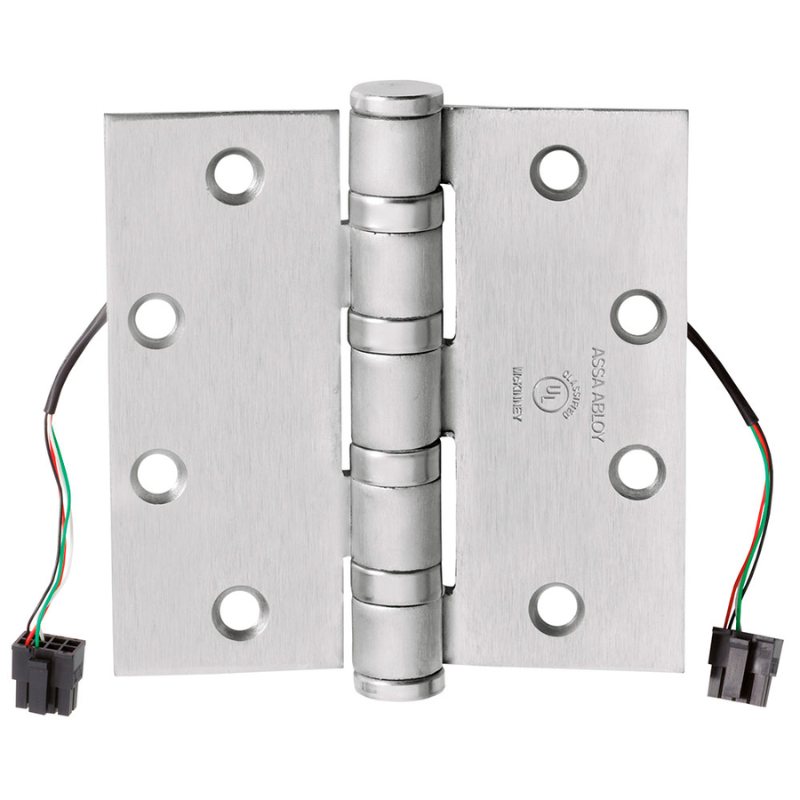

McKinney HT4A3786-4 1/2" x 4 1/2"-QC-US26D Electrified Full Mortise Heavy Weight Bearing Hinge, Hospital Tip, Satin Chrome

  • SKU: HT4A37864545QC4US26D
McKinney HT4A3786-4 1/2 x 4 1/2-US26D-QC
McKinney HT4A3786-4 1/2" x 4 1/2"-QC-US26D Electrified Full Mortise Heavy Weight Bearing Hinge, Hospital Tip, Satin Chrome
McKinney HT4A3786-4 1/2 x 4 1/2-US26D-QC
McKinney HT4A3786-4 1/2" x 4 1/2"-QC-US26D Electrified Full Mortise Heavy Weight Bearing Hinge, Hospital Tip, Satin Chrome
All MCKINNEY Products

McKinney HT4A3786-4 1/2" x 4 1/2"-QC-US26D Electrified Full Mortise Heavy Weight Bearing Hinge, Hospital Tip, Satin Chrome

  • SKU: HT4A37864545QC4US26D
Dhs. 924.00/ea
Available (3‑5 Days)
3-5 Days Lead Time
Wires with quick connect: 4 Wires
Handing Guide:
handing chart image

Buy at discounted prices

Minimum Qty Discount
3 + 10% off
12 + 12% off
24 + 15% off

McKinney HT4A3786-4 1/2 x 4 1/2-US26D-QC Electrified Full Mortise Heavy Weight Bearing Hinge, Five Kunckle, Hospital Tip, 4 1/2" x 4 1/2", [4][8][12] Wires With Quick Connect, Square Corner, 626 Satin Chrome Finish

The McKinney HT4A3786-4 1/2" x 4 1/2" US26D-QC is an electrified full mortise heavy-duty hinge featuring five knuckles and a hospital tip design. It measures 4 1/2" by 4 1/2" and includes options for 4, 8, or 12 wires with quick-connect capability. The hinge has a square corner profile and comes in a durable 626 satin chrome finish.

Features

  • Heavy-weight hinges should be used on all extra-heavy doors or those exposed to high-frequency use.
  • Allows electrical currents to pass from jamb through the hinge into door
  • Easily and safely powers locking hardware and access control
  • T4A3786- Steel base material
  • QC-ElectroLynx® Hinge
Material: Steel
Hinge Size: 4 1/2" x 4 1/2"
Wood Screw: 1 1/4" x 12 F.H.
Machine Screws: 1/2" x12-24 F.H
Number of Holes: 8
ANSI: A8111
Product Cut Sheet

Hospital Tip Handing
