Description

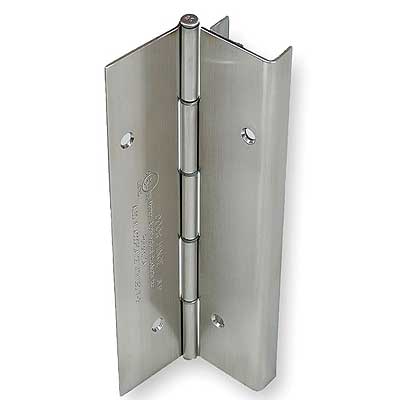

Markar HG305-95-HT 95" Fire-Rated Pin & Barrel 630/US32D Stainless Steel Hospital Tip Continuous Hinge Guard supports doors weighing up to 600 pounds. 95" Length
The Markar 300 Series Continuous Hinges are manufactured from heavy-duty 14 gauge 304 stainless steel and support weights up to 600 lbs.
The integral hinge guard protects the door from dings and gouges from carts and gurneys while providing clean lines and an aesthetic appearance. The
wrap-around edge guard protects the door from unsightly dents and gouges and will deflect objects, preventing further damage.
Markar HG305-95-HT Features
- Supports weights up to 600lbs.
- Hospital Tip
- 4'0" maximum door width
- Symmetrically templated
- Heavy-duty 14 gauge stainless steel
- US32D Satin Stainless Steel (630)
- Full Mortise
- .187" diameter stainless steel pin (rod)
- Flanged nylon bearings
Markar HG305-95-HT Specifications
Finish: | Satin Stainless Steel |
Length: | 95" |
Width: | 1-11/16" |
Leaf Thickness: | 0.125" |
Manufacturer: | Markar |
Markar HG305-95-HT Certifications
BHMA: | ANSI/BHMA Standard A156.26 Grade 1 |
UL: | Classified in accordance with UBC standard 7-2 for positive pressure 20 minutes – wood doors 90 minutes – hollow metal and composite core wood fire doors 3 hours –hollow metal doors mounted singly |
