LE Johnson 152670HD 30" x 84" 1500HD Series Heavy Duty Pocket Door Frame, For 1" to 1 3/4" Thick 30" Wide Doors up to 200 LBS Each

  • SKU: 152670HD

LE Johnson 152670HD 30" x 84" 1500HD Series Heavy Duty Pocket Door Frame, For 1" to 1 3/4" Thick 30" Wide Doors up to 200 LBS Each

  • SKU: 152670HD
Sale priceDhs. 1,171.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time

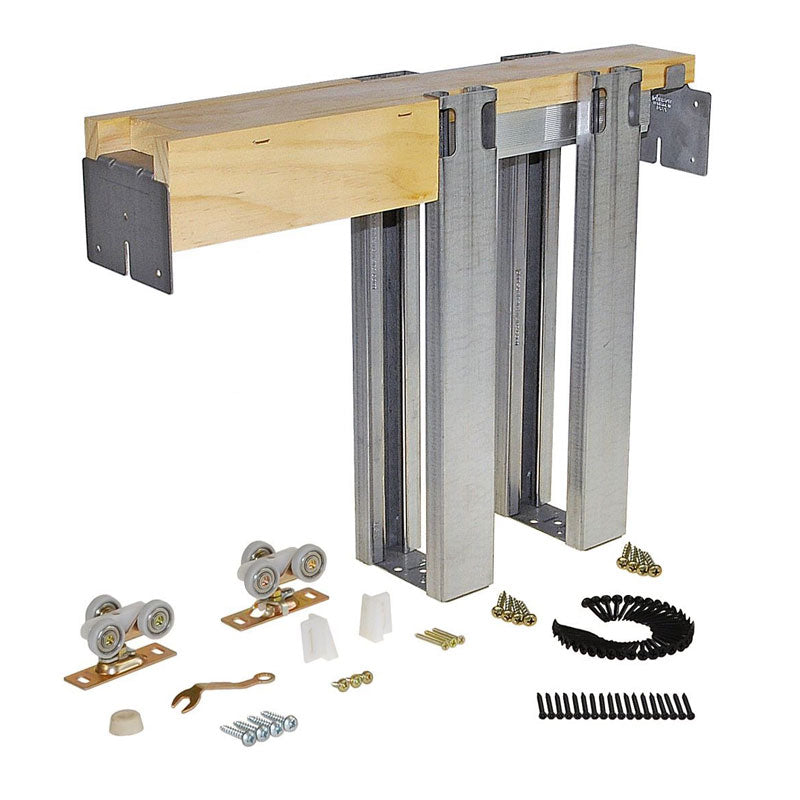

The LE Johnson 152670HD  is a 30" (2'-6") x 84" (7'-0") 1500HD Series Heavy Duty Pocket Door Frame Kit, that can accommodate 30" max width doors 1" to 1 3/4" thick and up to a max weight of 200 lbs.

Kit Contains:

1- Header (Factory Assembled)
4 - All Steel Split Stud Lengths
2 - 512085 Split Stud Floor Brackets
2 - 1125 Ball Bearing Door Hangers
1 - 1550 Pocket Door Guide
1 - 1513 Door Bumper
1 - 1712 Adjustment Wrench
 Hardware Mounting Screws



Max. Weight Per Door 200lbs. [91kg]
Max. Door Width 30" (2'- 6") [762mm]
Max. Door Height 84" (7'-0") [2134mm]
Door Thickness 1" [25mm] to 1-3/4" [44mm]
Min. Wall Structure Thickness 3-1/2" (2 x 4) [89mm]
