Description

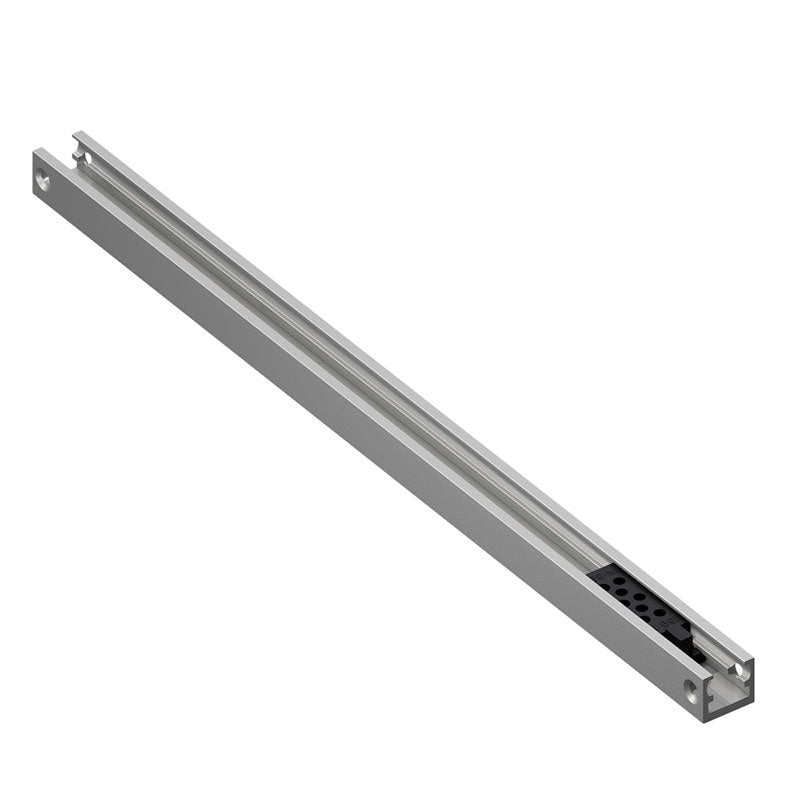

The LCN 6030-3038B 689 is a Standard Track with Bumper, for LCN 6030 Series Concealed Closer and comes in an Aluminum (689) finish.
6030 Series Concealed Closers
LCN's 6030 Series is a heavy-duty, double-acting closer designed to fit a narrow transom.
The single lever arm and roller assembly of the 6030 Series provide smooth, quiet door control and the choice of finishes and track functions meet virtually all architectural requirements. Installation at left illustrated with center pivot set (not included).
- Standard 6030 series closer shipped with standard arm, standard track with bumper, mounting/finish plate, and wood and machine screw pack
- Sized, double-acting cylinders for interior doors to 4'6" and exterior doors to 3'6"
- The aluminum frame requires a minimum 1 3/4" (44 mm) x 4" (102 mm) tube
- Closers to meet ADA requirements
- Adjustment of spring power and latch speed independent for either swing
- Backcheck and general speed adjustment are common for both swings
- Standard or optional custom powder coat finish
- The optional plated finish on the arm, fasteners, and mounting/finish plate
- Optional SRI primer for installations in corrosive conditions
Product Specs
| Manufacturer | LCN |
| SKU | 6030-3038B 689 |
| Installation | Commercial |
| Unit of Measure | Each |
| BAA Qualified | Yes |
Technical Specs
| Product Type | Door Closer Parts |
