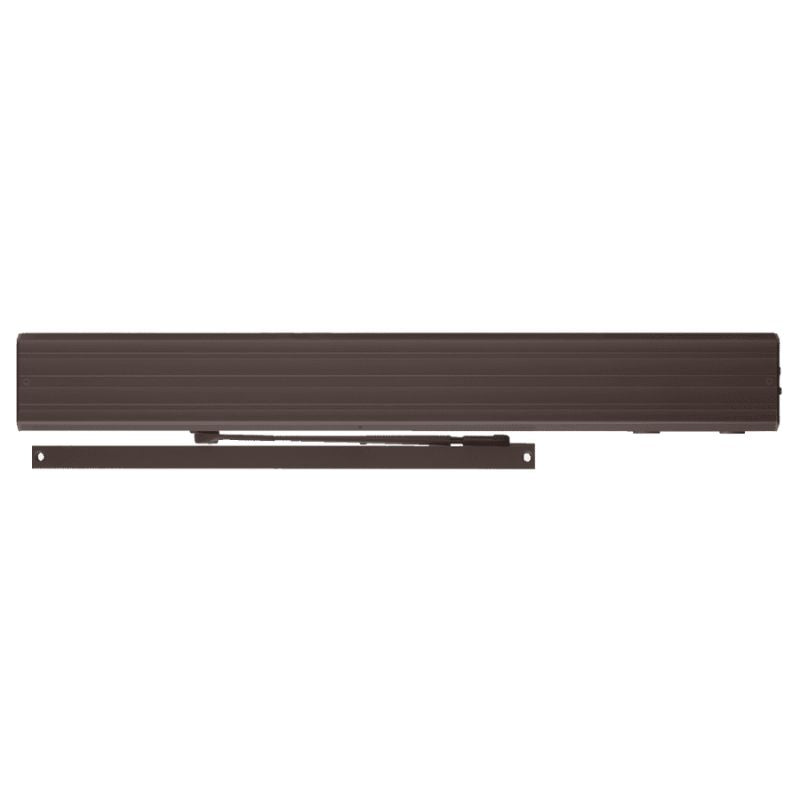

LCN 4631-STD 695 Low Energy Surface Mounted Electromechanical Benchmark Door Operator, Slide Track Arm Standard, Pull Side Mounted, 36"-48" Door, 90 Deg. Powered, 170 Deg. Manual Swing, Grade 1, Non Handed, Dark Bronze Painted Finish

The LCN 4631-STD-695 Benchmark Door Operator is an expertly crafted electromechanical device designed for use with low energy surface mounted doors. Its slide track arm is perfect for standard pull side mounting, and can handle doors measuring 36" to 48". With the ability to power a 90 degree swing and manually operate a 170 degree swing, this Grade 1 non-handed device is a top choice for any dark bronze painted finish door.

4630 Series Electrohydraulic Operators

The 4630 Series is a smart and reliable electrically low-energy power operator.

• Standard, top jamb (pull side) mounted 4630 series closer shipped with single lever (standard) arm, metal cover, standard track, and wood and machine screw pack. Actuators are available separately, see pages 199-215 of the Catalog
• Meets ADA requirements (power mode).
• Non-sized cylinders for interior doors to 4’0” and exterior doors to 3’0”.
• Non-handed for either right or left swinging door.
• 4630 has easily accessible switches to provide on/off and continuous hold-open functions. 4630CS provides concealed on/off power switch. The control module provides all timing and sequential door functions, electric strike controls, and adjustments for opening speed and force.
• Standard or optional custom powder-coated finish, end caps are black.
• Optional plated finish on cover, arm, and fasteners.
