Technical Specs
| Type | Surface |
| Technology | Hydraulic |
| Mounting Location | Pull Side |
| Mounting Style | Slide Track |
| Hold Open | No |
| Hand | LH |
| Degree Swing | 180 Deg. |
| Cover | Full Metal |
| Cold Weather Fluid | Yes |
| Product Type | Surface Closers |
Product Specs
| Manufacturer | LCN |
| SKU | 4513T-STD 689 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 2 Years |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |

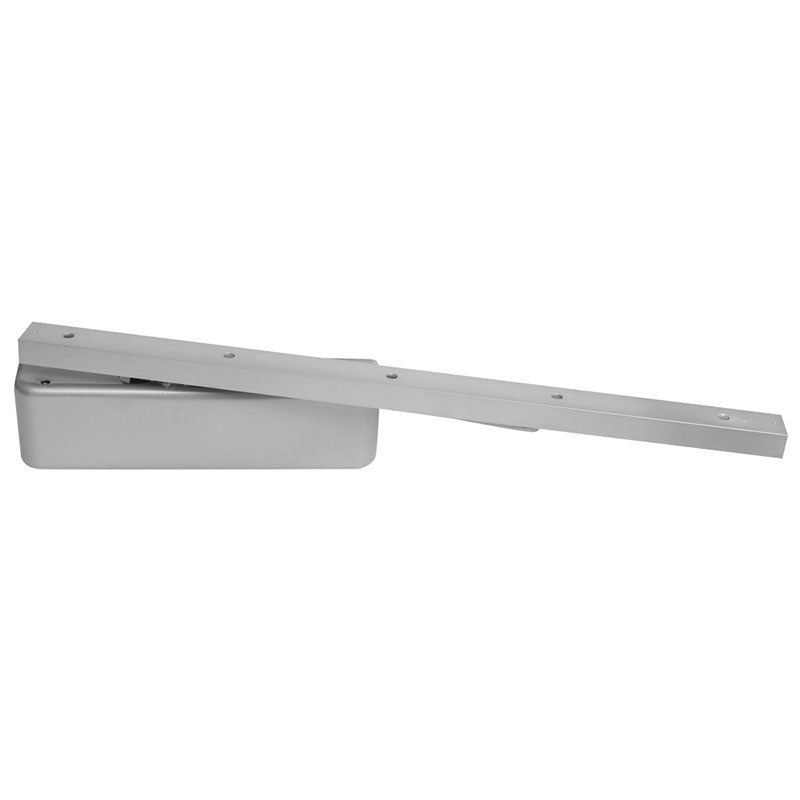

LCN 4513T-STD High-Security Track Arm Door Closer, Hinge Pull Side Mounted, Size 3, For Door Widths 34"-38", Aluminum
4510T Series High-Security Closers
The LCN 4510T Series is a heavy-duty closer with a high-security track.The 4510T Series has a forged steel single lever arm and heavy gauge metal security cover designed for correctional, vandal-prone, institutional, and other high-traffic interior applications.
- Standard 4510T series closer shipped with standard arm, and security track. (non-hold-open), track roller, metal security cover, and TORX Machine Screw pack. See 4510T Series page 21 for options.
- Sized cylinders for interior doors to 4’0”.
- Closer mounts hinge side, specify right or left swinging door.
- 4511T cylinder meets ADA requirements. See 4510T Series page 22.
- Standard or optional custom powder coat finish.
- Optional SRI primer for installations in corrosive conditions.
- The 4510T Series is UL listed for self-closing doors.
- Tested and certified under ANSI Standard A156.4, grade one.
OMH Approved
Applications
- For any concealed or surface-mounted installation subject to potential abuse or vandalism
- For correctional, aluminum, hollow metal, or wood doors and frames
- Can be used with a hinge or pivot-mounted door
- Adapter plates and other installation accessories available for non-standard conditions
Positive Pressure
- LCN closers have been certified for three hours by UL to be in compliance with UL 10 C. Contact LCN for specific details on door closer fire ratings.
