Description

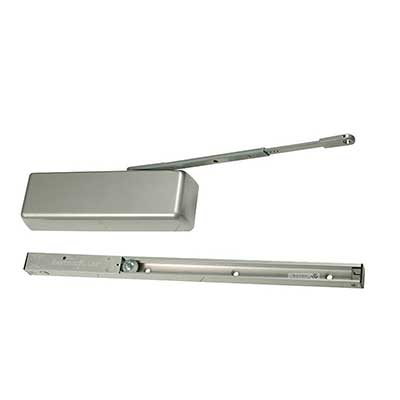

LCN 4040SE-STDTRKARM-24V-689 Surface Door Closer, Slide Track Arm Standard with Hold Open, 110 Deg. Hold, Plastic Cover, 24V, Grade 1, Non Handed, Aluminum Painted Finish
4040SE Series Fire/Life Safety Closers/Holders
The 4040SE Series features 2 mounting options.
The 4040SE is a heavy duty, non-handed, non-sized closer/holder designed to provide single point hold-open for fire and smoke barrier doors.
- Standard 4040SE series closer shipped with a standard arm, 24V or 120V (please specify) SE track, standard cover, and wood and machine screw pack. SEL tracks are optional.
- Non-sized cylinders for interior doors to 4'0".
- Hold-open force is adjustable.
- Momentary on/off switch board assembly for testing door release also provides over-voltage protection. Field replaceable.
- Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.
- Closer mounts on either push or pull side of the door.
- Non-handed for mounting on either right or left hand door.
- Concealed or surface wiring.
- Interfaces with alarm systems. Consult factory for full details.
- Standard or optional custom powder coated finishes on cover and arm.
- Optional plated finishes
Product Specs
| Manufacturer | LCN |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Base Material | Varies |
| UL Listing Type | UL 10C |
| ANSI Number | A156.15 |
| BAA Qualified | Yes |
| Limited Warranty | 2 Years |
| ADA Compliance | Yes |
| Finish | 689/US28 |
| Finish Description | Aluminum Painted |
| Finish Family | Matte Silver |
Technical Specs
| Type | Surface |
| Technology | Electrohydraulic |
| Mounting Location | Push or Pull Side |
| Mounting Style | Slide Track |
| Hold Open | Yes |
| Degree Hold Open | 110 degree |
| Hand | Non-Handed |
| Degree Swing | 110 degree |
| Cover | Full Plastic |
| Product Type | Surface Closers |
