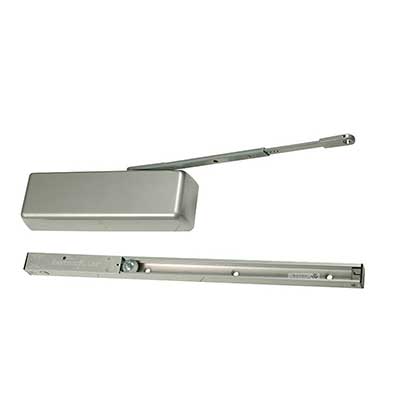

LCN 4040SE-LONG 24V 689 Long Arm Track Door Closer - Electrohydraulic 24V Hold Open 110 Deg, Surface Mounted-Push or Pull Side, Non Handed, US28/689

  • SKU: 4040SELONG24V689

LCN 4040SE-LONG 24V 689 Long Arm Track Door Closer - Electrohydraulic 24V Hold Open 110 Deg, Surface Mounted-Push or Pull Side, Non Handed, US28/689

  • SKU: 4040SELONG24V689
Sale priceDhs. 3,570.00/ea
In Stock
In Stock
CUSTOMIZE:
Select Your Brentwood Configuration Here *
Flores Quick Ship Fabric Options *
Wood Finish *

Technical Specs

Type Surface
Technology Electrohydraulic
Mounting Location Push or Pull Side
Mounting Style Slide Track
Hold Open Yes
Degree Hold Open 110 degree
Hand Non-Handed
Degree Swing 110 degree
Cover Full Plastic
Product Type Surface Closers



Product Specs

Vendor Allegion
Manufacturer LCN
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Base Material Varies
UL Listing Type UL 10C
ANSI Number A156.15
BAA Qualified Yes
Limited Warranty 2 Years
ADA Compliance Yes
Finish 689/US28
Finish Description Aluminum Painted
Finish Family Matte Silver



LCN 4040SE-LONG 24V 689 Long Arm Track Door Closer - Electrohydraulic, 24V, Hold Open 110 Degree, Surface Mounted-Push or Pull Side, Non-Handed, US28/689 Aluminum Finish

4040SE Series Fire/Life Safety Closers/Holders

The 4040SE Series features 2 mounting options.

The 4040SE is a heavy-duty, non-handed, non-sized closer/holder designed to provide single-point hold-open for fire and smoke barrier doors.

  • Standard 4040SE series closer shipped with a standard arm, 24V or 120V (please specify) SE track, standard cover, and wood and machine screw pack. SEL tracks are optional.

  • Non-sized cylinders for interior doors to 4'0".

  • Hold-open force is adjustable.

  • Momentary on/off switchboard assembly for testing door release also provides over-voltage protection. Field replaceable.

  • Functions as a full rack and pinion closer when hold-open is not engaged or current is interrupted.

  • Closer mounts on either push or pull side of the door.

  • Non-handed for mounting on either right or left-hand door.

  • Concealed or surface wiring.

  • Interfaces with alarm systems. Consult the factory for full details.

  • Standard or optional custom powder-coated finishes on the cover and arm.

  • Optional plated finishes
