Description

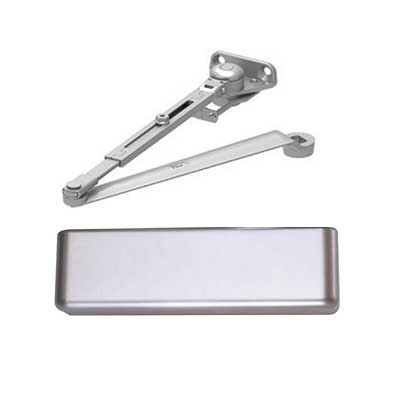

LCN 4011-FL Surface Door Closer with Fusible Link Arm
The Fusible Link Arm is a handed arm that releases the hold-open function when exposed to temperatures above 165 degree Fahrenheit.
4010 Series Surface Mounted Closers
The 4010 is the best performing heavy duty closer designed specifically for institutional and other rugged high traffic applications.The Surface-mounted 4000 Series LCN closers feature a very modern design engineered for each application, easy installation, and superior performance and are designed for high traffic settings.
- Standard 4010 series closer is shipped with regular arm, standard plastic cover, and self reaming and tapping screws. See Options tab for options.
- Sized cylinders for interior doors to 5’0” and exterior doors to 4’0”.
- Non-sized cylinder (4011) adjustable for interior doors to 4’6” and exterior doors to 3’6”.
- Closer mounts hinge side, specify right or left swinging door.
- Corner brackets available. See Options tab for options.
- 4011 cylinder meets ADA requirements.
- Standard or optional custom powder coat finish.
- Optional plated finish on metal cover, arm and fasteners.
- Optional SRI primer for installations in corrosive conditions is available with powder coat only.
- The 4010 Series is UL and cUL listed with regular or fusible link arms for self-closing doors.
- Tested and certified under ANSI Standard A156.4, grade one.
Product Specs
Manufacturer | LCN |
SKU | 4011-FL LH 689 |
Grade | Grade 1 |
Installation | Commercial |
Unit of Measure | Each |
Base Material | VARIES |
BAA Qualified | Yes |
Limited Warranty | 30 Years |
Finish | 689/US28 |
Finish Description | Aluminum Painted |
Finish Family | Matte Silver |
Technical Specs
Type | Surface |
Technology | Hydraulic |
Mounting Location | Pull Side |
Mounting Style | Regular |
Hold Open | Yes |
Degree Hold Open | 140 Deg. |
Arm Type | Fusible Link Arm |
Hand | LH |
Degree Swing | 140 Deg. |
Cover | Full Plastic |
Cold Weather Fluid | Yes |
Product Type | Surface Closers |
