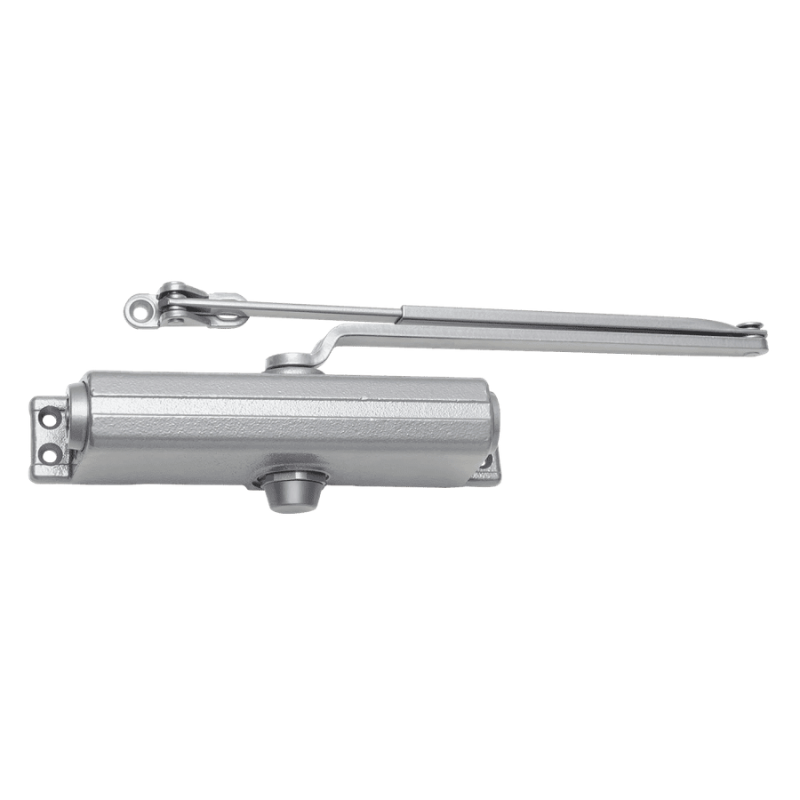

LCN 1261-RW/PA Surface Door Closer, Regular Arm With Parallel Arm Shoe, Push or Pull Side Tri Mount, Up To 180 Degree Swing, Size 1 to 5, No Full Cover, All Weather Fluid, Grade 1, Non Handed
The LCN 1261-RW/PA Surface Door Closer is a heavy-duty, Grade 1 commercial door closer engineered for reliable performance in high-traffic environments such as offices, schools, healthcare facilities, and government buildings. Featuring a versatile tri-mount design (regular arm, top jamb, or parallel arm with PA shoe), this non-handed closer supports both push and pull side installation and offers an adjustable Size 1–5 spring to accommodate a wide range of interior and exterior doors. Built with all-weather hydraulic fluid for consistent operation in extreme temperatures and compliant with ANSI/BHMA A156.4 and UL10C fire ratings, the LCN 1261 ensures durability, safety, and code compliance. Designed for standard commercial footprints and ADA compatibility when properly adjusted, it delivers smooth, controlled closing with long-lasting performance backed by a 20-year warranty.
Features:
- Standard 1260 series closer shipped with regular arm, parallel arm shoe, a shaft cover, and self reaming and tapping screws.
- Non-sized (1-5) cylinder is adjustable for interior doors up to 4’6” in width and exterior doors to 3’6” in width
- Meets ADA requirements when adjusted to Size 1
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Mounts to most common commercial footprint (3/4” x 9 1/16”)
Regular Arm with Parallel Arm Shoe (RWPA)
- Non-handed
- Mounts on hinge side, top jamb or parallel arm
- Includes parallel arm with parallel arm shoe (1260-62PA) for parallel arm mounting
