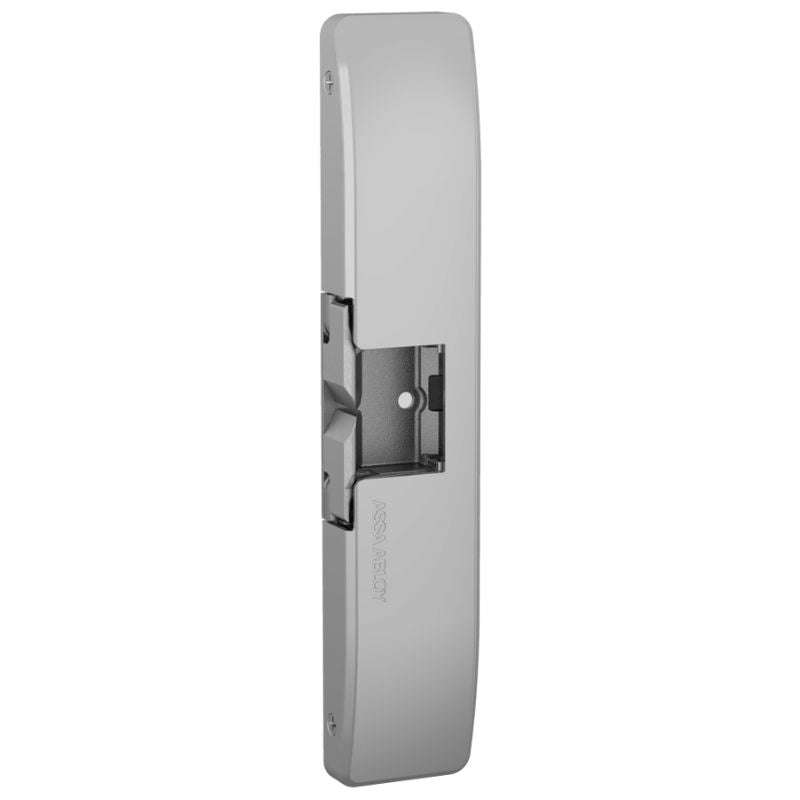

HES 9600-630 Rim Panic Device Electric Strike, Surface Mounted, Fail Safe/Fail Secure, Satin Stainless Steel

  • SKU: 9600630

HES 9600-630 Rim Panic Device Electric Strike, Surface Mounted, Fail Safe/Fail Secure, Satin Stainless Steel

  • SKU: 9600630
Sale priceDhs. 1,513.00/ea
In Stock
In Stock

HES 9600-630 Rim Panic Device Electric Strike, Surface Mounted, 3/4" Thickness, Fail Safe/Fail Secure,  12/24VDC, Satin Stainless Steel Finish

This product, the HES 9600-630 Rim Panic Device Electric Strike, is a surface mounted device with a thickness of 3/4", available in both fail safe and fail secure modes. It operates on either 12VDC or 24VDC and has a satin stainless steel finish.

The HES 9600 Series Electric Strike is designed to be both windstorm resistant and easily mountable on the surface of the door frame. This series is specifically engineered to work with rim exit devices that have a 3/4" throw Pullman latchbolt. One of the key features is that all its components are fully enclosed within a 3/4" thick stainless steel housing, eliminating the need for any frame cutting during installation. Simply position the electric strike on the frame's surface, align it with the exit latchbolt, and secure it in place.

Additionally, the design has been optimized for easier adjustments, with the base now separate from the cover. This strike is also versatile, being field selectable for either fail-secure or fail-safe operation and can be adjusted for 12 or 24 VDC power inputs. This makes it a highly adaptable solution suitable for a variety of security needs.

Frame Application

  • Metal
  • Wood

Electrical Features

  • .45 Amps at 12VDC* continuous duty
  • .25 Amps at 24VDC* continuous duty

Standard Features

  • Installs in metal or wood frames
  • Separate base and cover for easy adjustments
  • Stainless steel construction
  • Tamper resistant
  • Static strength 2,000 lbs.
  • Dynamic strength 120 ft-lbs.
  • Endurance 1,000,000 cycles
  • Field selectable fail safe/fail secure
  • Dual voltage 12 or 24 VDC
  • Horizontal adjustment
  • Non-handed
  • Internally mounted solenoid
  • Accommodates up to 3/4" Pullman latch
  • Five-year limited warranty
Manufacturer HES
SKU 9600-630
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Pullman Latch Rim Panic Device
Base Material Stainless Steel
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Function Field Selectable (Safe/Secure)
Operating Voltage 12VDC/24VDC
Amp Draw .45 @ 12V , .25 @ 24V
Keeper Size PK
Configuration Centered
For Use With Rim Exit Devices
Faceplate Size 9" x 1-3/4"
Fire Rated No
Holding Force 2000 lbs.
Switch Type None
Frame Application Metal or Wood
Product Type Electric Strikes
