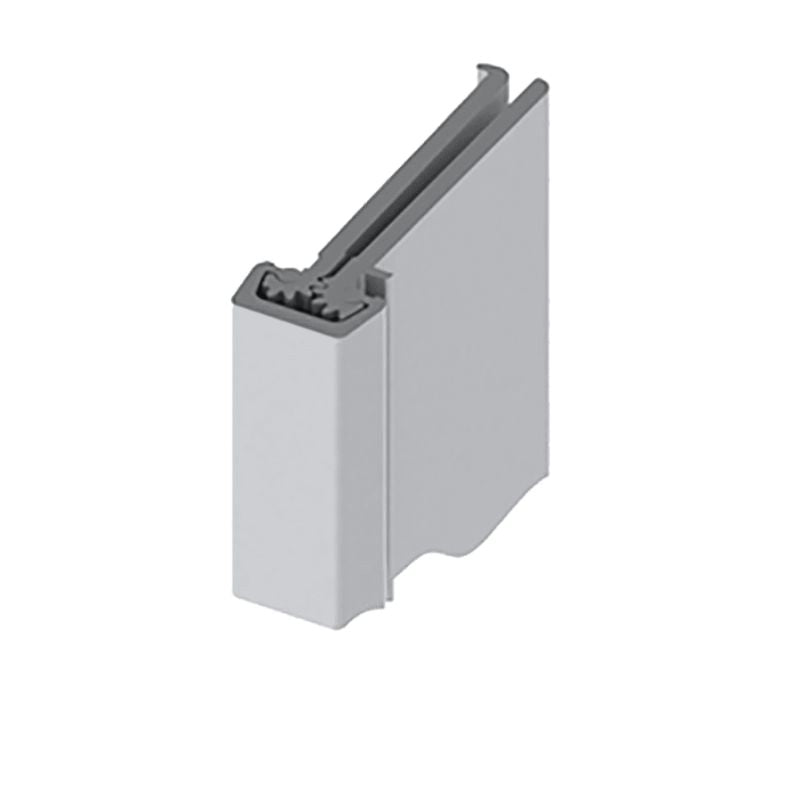

Heavy Duty Concealed Leaf Hinge
Features
Specifications
Materials: | Aluminum 6063-T6 |
Clearance: | 5/16" (8 mm) hinge side Plus standard lockside clearance |
Fasteners: | Drill-Kwik ® screw |
Length: | 83" (2108 mm) |
Fire Rating: | Up to 3 hr. metal and 90 min. wood composite (with studs) When ordering, must specify if UL stamp is required |
Door Reinforcement: | None required to 200 lbs. Heavier weight use 16-gauge channel |
Frame Reinforcement: | None required to 200 lbs. Heavier weight use 16-gauge channel |
Warranty: | All Roton products have a lifetime warranty. When ordering an electric Roton, the electric portion of the hinge has a one-year warranty |
Manufacturer: | Hager |
Certifications
cULus: | cULs Listed |
ANSI: | ANSI 156.26 for A31031G |
