All HAGER Products

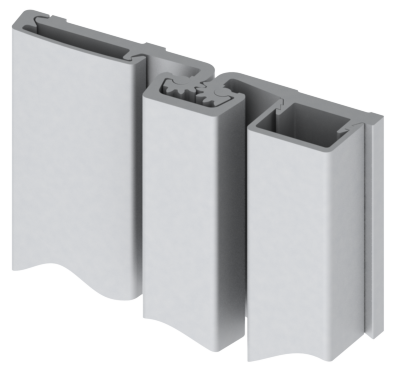

Hager Roton 780-157 Full Surface Standard Duty Continuous Geared Hinge - 95"

  • SKU: 78015795CLRULFF
Hager 780-157-95
780-157-95
780-157-95 Hinge
Hager 780-157-95
780-157-95
780-157-95 Hinge
All HAGER Products

Hager Roton 780-157 Full Surface Standard Duty Continuous Geared Hinge - 95"

  • SKU: 78015795CLRULFF
Dhs. 1,095.00/ea
In Stock
In Stock
Hager Finish: CLR Clear Anodized Satin Aluminum
Hager Fire Rating: UL-FF Fire Rated (UL Stamp)

Hager Roton 780-157 Full Surface Standard Duty Continuous Geared Hinge - 95"

Standard Duty Full Surface Hinge



Features

  • For surface applications where frame face dimension is limited
  • Security moldings
  • 1/16" (1.5 mm) inset

Specifications

Materials: Aluminum 6063-T6
Clearance: 1/32" (1 mm) minimum recommended for the hinge side
Plus standard lockside clearance
Fasteners: Drill-Kwik ® screws and sex bolts
Length: 95" (2413 mm)
Fire Rating: Up to 3 hr. metal and 90 min. wood composite (with studs)
When ordering, must specify if UL stamp is required
Door Reinforcement: None required to 200 lbs
Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel
Warranty: All Roton products have a lifetime warranty. When ordering electric Roton, the electric portion of the hinge has a one-year warranty
Manufacturer: Hager

Certifications

cULus: cULs Listed
Product Cut Sheet

Continuous Hinge Handing Chart
