Description

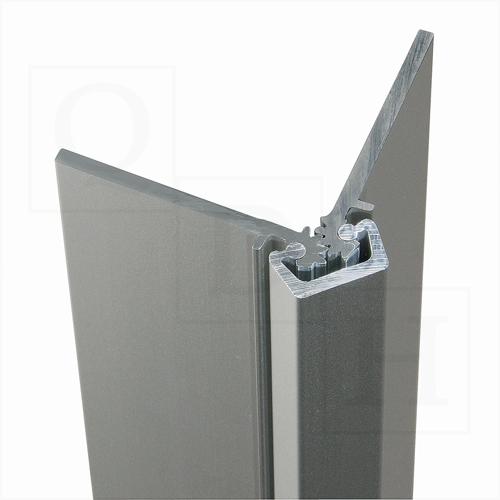

Hager Roton 780-112HD Concealed Leaf Heavy Duty Tamper Resistant Continuous Geared Hinge - 83"
Heavy Duty Concealed Leaf Hinge
Features
- This application is intended for use in hospital psychiatric areas and places of high security. The hinge is prepared with a hospital tip and every other bearing is supplied with a set screw to lock against the inside of the cover channel for additional security
- Tamper Resistant Hinge with Security Torx Fasteners
- Frame and door leaf alignment ribs for proper hinge and door locator
Specifications
Materials: | Aluminum 6063-T6 |
Clearance: | 5/16" (8 mm) hinge sid Plus standard lockside clearance |
Fasteners: | Drill-Kwik ® screws |
Length Options: | 83" (2108 mm) |
Door Reinforcement: | None required to 200 lbs. Heavier weight use 16-gauge channel |
Frame Reinforcement: | None required to 200 lbs. Heavier weight use 16-gauge channel |
Fire Rating: | Up to 3 hr. metal and 90 min. wood composite(with screws) When ordering, must specify if UL stamp is required |
Warranty: | All Roton products have a lifetime warranty. When ordering an electric Roton, the electric portion of the hinge has a one-year warranty |
Manufacturer: | Hager |
