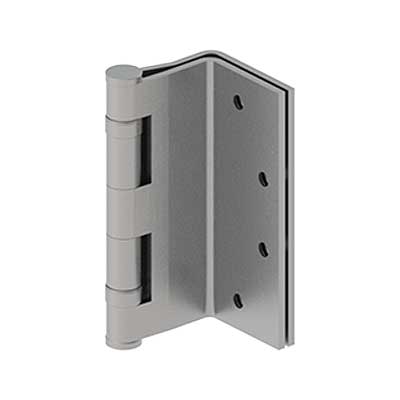

Hager BB1361-50-US32D Ball Bearing Swing Clear Hinge - 5", Satin Stainless Steel Finish

  • SKU: BB136150US32D
Hager BB1361-50-US32D
All HAGER Products

Hager BB1361-50-US32D Ball Bearing Swing Clear Hinge - 5", Satin Stainless Steel Finish

  • SKU: BB136150US32D
  • ✓
    In Stock
    In Stock
Your Price
Dhs. 548.00/ea

Volume Discounts Discount
3 + 10% off
12 + 12% off
24 + 15% off

Hager BB1361-50-US32D Ball Bearing Swing Clear Hinge - 5", 630/US32D Satin Stainless Steel Finish

Hager BB1361-50 is a 5" standard weight, five knuckles full mortise swing clear hinge. The Hager BB1361-50 is ball bearing and a Non-Removable Pin.

Hager BB1361-50 Features

  • ANSI A5122
  • For beveled edge doors
  • When opened 90 °, the door projects 3/32" (2 mm) past stop of a jamb
  • Non-rising removable pin with button tip and plug
  • Two ball bearings
  • Reversible
  • For use in hospitals or other institutional type buildings
  • Stainless Steel with Stainless Steel pin
  • US32D - Satin Stainless Steel

Hager BB1361-50 Specifications

Materials: Steel with Steel pin
Finish: US32D - Satin Stainless Steel
Hinge Size: 5"
Metal Gauge: 0.145
Hole Count: 8
Machine Screw Size: 1/2" x 12-24 FH
Wood Screw Size:
1-1/4 x 12 FH
Manufacturer: Hager
